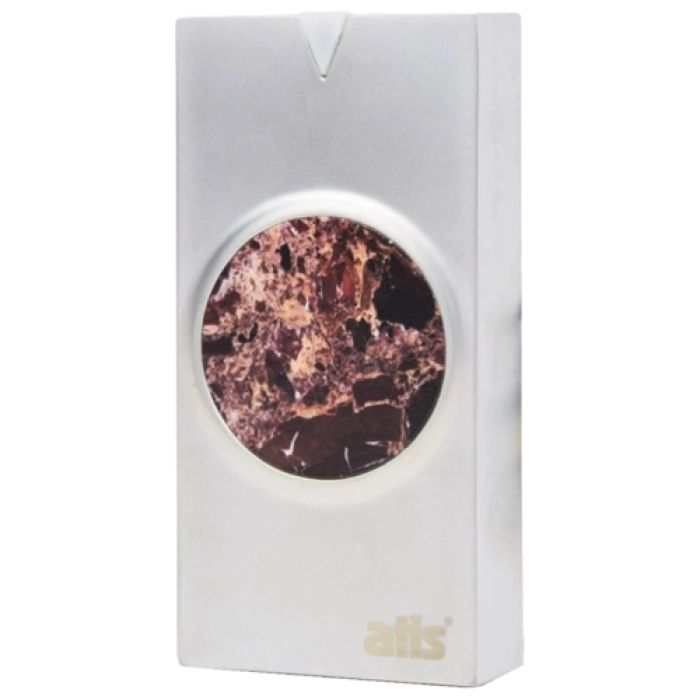

ATIS ACPR-05 EM-W (white) Controller

Description ATIS ACPR-05 EM-W (white) Controller

● Standard: EM-Marine 125kHz;
● Number of users: 10000;
● Data format on the Wiegand interface: configurable bit depth 26 / 34 bits;
● Operating modes: standalone controller, standalone trigger controller, reader;
● Lock unlocking time: 0.5-99s;
● Relay output contacts: NO, NC, COM;
● Max. lock control current: no more than 1A at 12V;
● Access indication: sound/light;
● Power supply: DC 9-15V;
● Consumption: 50mA;
● Overall dimensions: 100x50x19 mm
