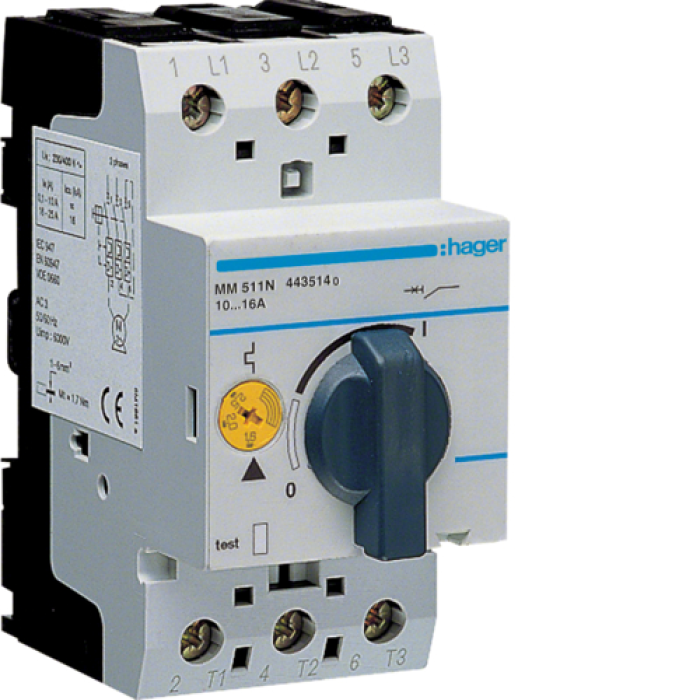

Automatic circuit breaker for motor protection, Isetting=10-16A, 2.5M, Hager MM511N

Description Automatic circuit breaker for motor protection, Isetting=10-16A, 2.5M, Hager MM511N

Nominal flow range: 10-16 A
Number of poles: 3
Sputter type: Thermomagnetic
Adjustment range of thermal sprayer: 10-16 A
Adjustment of magnetic spitter: 208 A
Nominal operating voltage of the exchanger (Ue AC): 230/400/440/500/690 V
Nominal insulation voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 6 kV
Frequency: 50/60 Hz
Nominal limiting withstand voltage (Icu) at 230 V AC: 100 kA
Rated limiting voltage (Icu) at 400 V AC: 100 kA
Rated limiting voltage (Icu) at 440 V AC: 100 kA
Rated limiting voltage (Icu) at 500 V AC: 6 kA
Rated limiting voltage (Icu) at 690 V AC: 3 kA
Nominal working vimikayucha building capacity (Ics) at 230 V AC: 100 kA
Rated operating voltage (Ics) at 400 V AC: 100 kA
Rated operating voltage (Ics) at 440 V AC: 100 kA
Rated operating voltage (Ics) at 500 V AC: 6 kA
Rated operating voltage (Ics) at 690 V AC: 3 kA
Mechanical wear resistance: 100,000 cycles
Electrical wear resistance: 100,000 cycles
Protection level: IP20
Operating temperature range: -20...+60 °C
Temperature range: -40...+80 °C
Installation height above the sea level: up to 2000 m
Connection type: Screw terminals
Overcut of hard conductor: 1-6 mm²
Overcut of wire conductor: 1-6 mm²
Terminal tightening torque: 2.5 Nm
Mounting method: DIN rail mounting (EN 60715)
Width: 45 mm
Height: 89 mm
Glibina: 75.5 mm
Vaga: 0.25 kg
Compliance with standards: IEC/EN 60947-2, IEC/EN 60947-4-1
