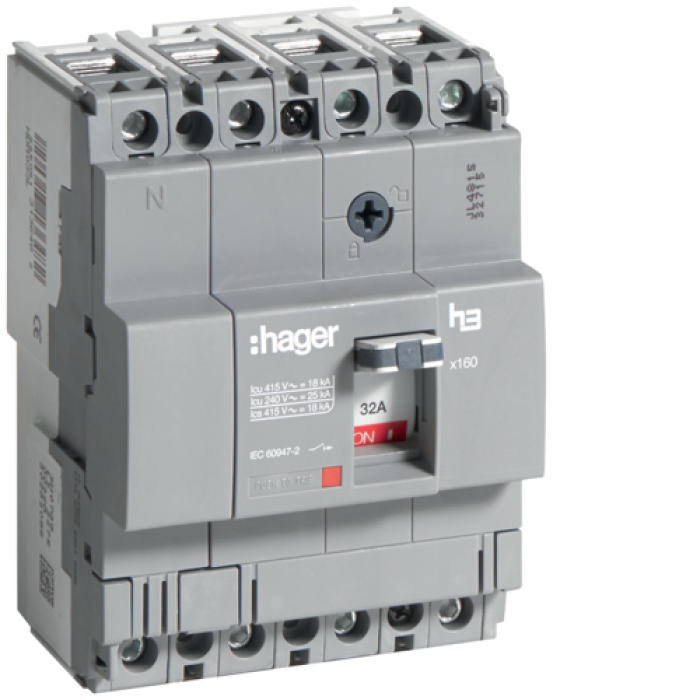

Automatic circuit breaker x160. In=32A. 4p. 18kA. Tffix./Mffix.

Description Automatic circuit breaker x160. In=32A. 4p. 18kA. Tffix./Mffix.

Virobu type: Automatic vimikach
Frame size: 160 A
Nominal flow (In): 32 A
Number of poles: 4
Nominal operating voltage (Ue): 400 V AC
Frequency: 50/60 Hz
Rated overvoltage capacity (Icu): 18 kA at 400 V AC
Nominal operating voltage (Ics): 18 kA
Nominal insulation voltage (Ui): 690 V
Nominal impulse vitrimuvan voltage (Uimp): 8 kV
Type of sputter: Thermomagnetic
Adjusting the thermal outlet: Fixed
Nominal adjustment of thermal power supply (Ir): 32 A
Adjustment of electromagnetic distributor: Fixed
Nominal adjustment of electromagnetic distributor (Im): 320 A
Wiki category: A
Energy class: 3
Mechanical wear resistance: 10000 cycles
Electrical wear resistance: 5000 cycles
Protection level (with front panel): IP40
Protection level (clem): IP20
Operating temperature range: -25°C to +70°C
Saving temperature range: -40°C to +85°C
Installation method: On the mounting panel
Compliance with standards: IEC/EN 60947-2
Purpose: Protection for re-vanting and short-term flashing
Height: 130 mm
Width: 105 mm
Depth: 68 mm
