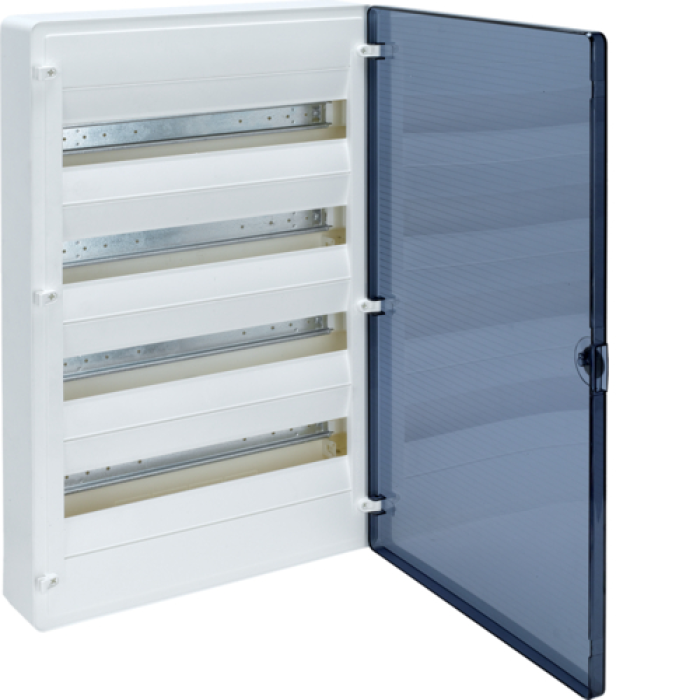

Charger panel with transparent doors, 72 mod. (4x18), GOLF

Description Charger panel with transparent doors, 72 mod. (4x18), GOLF

Article: VS418TD
Series: GOLF VS
Virobnik: Hager
Installation type: In-built
Number of modules: 72
Number of rows: 4
Modules in one row: 18
Door type: Prozori
Body material: Thermoplastic
Door material: Polycarbonate
Body color: White (RAL 9010)
Color of doors: Dimly-prosperous
Protection level IP: IP40
Electrosachist class: II (sub-grade Isolation)
Impact level IK: IK07
Nominal insulation voltage: 400 V AC
Overall width: 408 mm
Overall height: 750 mm
Overall depth: 100 mm
Width of niche for installation: 380 mm
Height of niche for installation: 725 mm
Depth of niche for installation: 72 mm
Availability of DIN rails: Yes (4 pcs.)
Availability of terminal blocks N/PE: Yes
Terminal capacity N: 2 x (19 terminals 1.5-16 mm² + 2 terminals 1.5-25 mm²)
Strength of PE terminals: 2 x (19 terminals 1.5-16 mm² + 2 terminals 1.5-25 mm²)
Possibility of sealing: Yes
Operating temperature range: -25°C to +60°C
Appearance standard: IEC/EN 60670-24
Vaga: 5.63 kg
