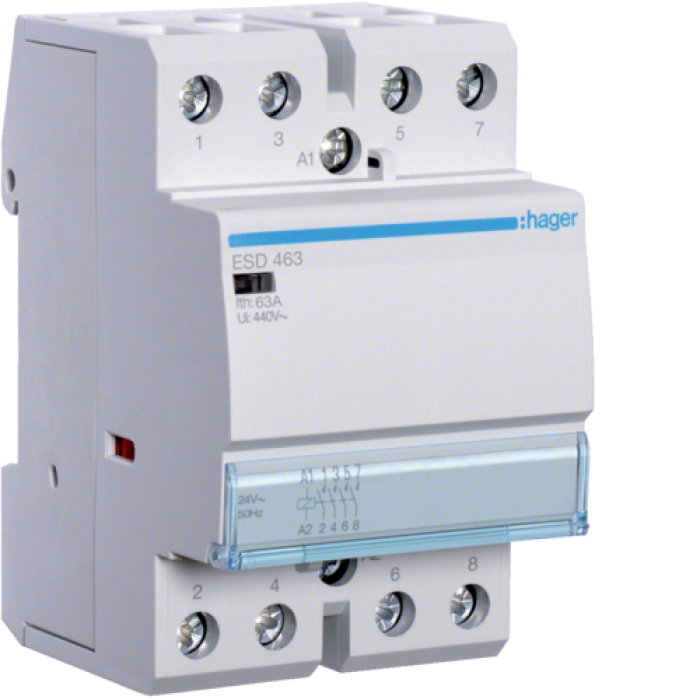

Contactor 63A, 4HB, 24V Hager ESD463

Description Contactor 63A, 4HB, 24V Hager ESD463

Nominal flow (AC-1): 63 A
Nominal flow (AC-7a): 63 A
Nominal flow (AC-7b): 22 A
Number of poles: 4
Contact configuration: 4NO
Nominal operating voltage: 400 V AC
Nominal insulation voltage: 500 V
Nominal impulse voltage: 4 kV
Nominal voltage (coils): 24 V AC
Frequency: 50/60 Hz
Spozhivana coil tension (increased): 11 VA
Reduced tension of the cat (morning): 4 VA
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance (AC-7a): 100,000 cycles
Maximum number of operations per year: 300
Minimum switching current: 100 mA
Maximum switched power (AC-1, 400V): 43.6 kW
Maximum engine tension (AC-3/AC-7b, 400V): 7.5 kW
Protection level (device): IP20
Protection level (with installed shield): IP40
Operating temperature range: -10°C to +50°C
Saving temperature range: -40°C to +80°C
Conductor overcut (hard): 1.5 to 25 mm²
Conductor cross-section (bend): from 1.5 to 16 mm²
Terminal tightening torque: 1.2 Nm
Width: 4 modules
Mounting type: DIN rail (EN 60715)
Standard: EN 61095, IEC 61095
Indication: Mechanical (visual)
Vitrium power during short circuit: 6 kA (for protection by the gG 63A)
