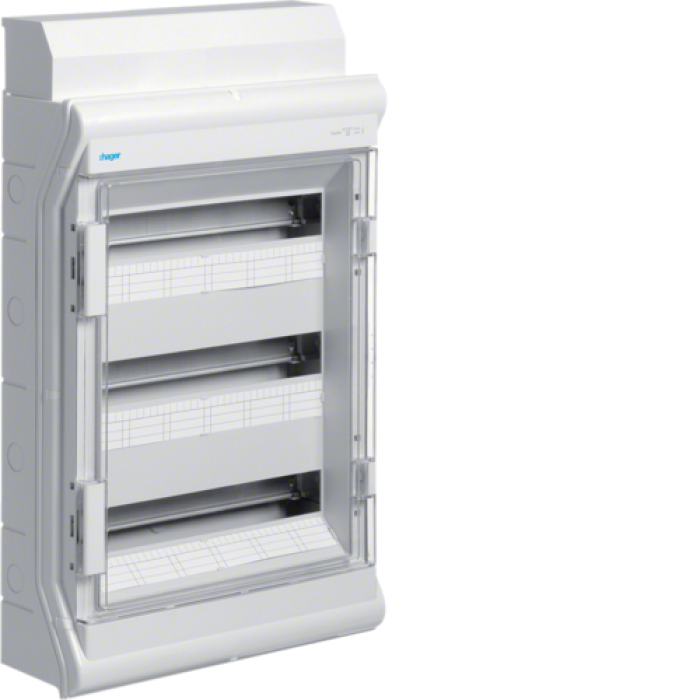

Distribution board for 54 (60) modules, charger with transparent doors, IP65, VECTOR

Description Distribution board for 54 (60) modules, charger with transparent doors, IP65, VECTOR

Brand: Hager
Series: VECTOR
Model: VE318DN
Virobu type: Split shield
Installation type: Vbudovaniye
Number of modules: 54
Number of modules in one row: 18
Number of rows: 3
Body material: Plastic
Type of plastic housing: Polystyrene / ABS
Body color: Gray
Body color code (RAL): RAL 7035
Door material: Polycarbonate
Door type: Prozori
Step protection IP: IP65
IK protection level (impact resistance): IK08
Class for the electrosachist: II
Nominal insulation voltage: 500 V AC
Tested with baked dart: 650 °C
Operating temperature: -25 °C to +40 °C
Complete set with terminal blocks: So, N and PE buses
Availability of DIN rails: Yes
The ability to change directly through the doors: So
External height: 650 mm
External width: 460 mm
Glibina external: 160 mm
Niche height: 610 mm
Niche width: 420 mm
Nishi depth (mounting depth): 100 mm
Vaga: 6.2 kg
Performance standards: EN 62208
