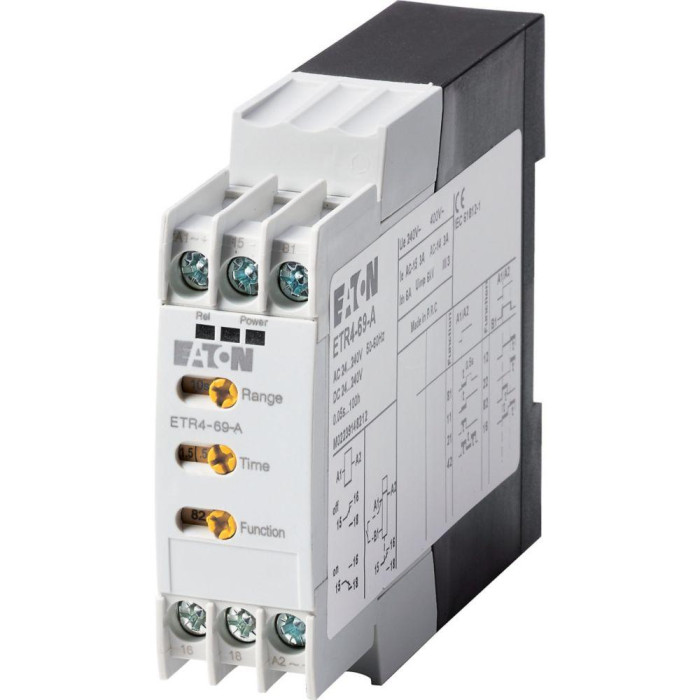

Time relay ETR4-69-A EATON

Description Time relay ETR4-69-A EATON

Type of device: Multi-functional clock relay
Model: ETR4-69-A
Volator: EATON
Voltage: 24-240 V AC/DC
Frequency range: 50/60 Hz
Number of clock functions: 7 (A, At, B, C, D, E, F)
Function A: Curb damping
At function: Curing pulse damping
Function B: Curing pulse damping (single-stable multivibrator)
Function C: Silence the switch after switching off the life
Function D: Pulse generator, starting with a pulse
Function E: Pulse generator, starting with a pause
Function F: Pulse forming
Hour range: 0.05 s - 100 h
Hour range: 0.05 s - 1 s, 0.5 s - 10 s, 5 s - 100 s, 0.5 hv - 10 hv, 5 hv - 100 hv, 0.5 year - 10 year, 5 year - 100 year
Output contacts: 1 intermittent contact (1CO / SPDT)
Nominal contact current: 5 A (AC-15), 3 A (DC-13)
Maximum contact current: 5 A
Contact voltage (AC1): 1250 VA
Contact pressure (DC1): 150 W
Contact material: AgNi
Mechanical wear resistance: 30 x 10^6 cycles
Electrical wear resistance: 10^5 cycles at nominal navantazhennі
Accuracy of hour setting: +/- 5%
Repetition Accuracy: +/- 0.5%
Temperature Drift: +/- 0.05% per °C
Reset Hour: 100 ms
Resistance: 3 VA
LED Indication: Green (Live ON), Zhovtiy (relay station)
Operating temperature: -25 °C to +55 °C
Saving temperature: -40 °C to +85 °C
Process level: IP20 (terminals), IP40 (front panel)
Mounting type: On a 35 mm DIN rail
Connections: Gwent clamps
Maximum girder Connected wires: 2.5 mm² (single-core), 1.5 mm² (high-core with ferrule)
Overall dimensions (WxHxD): 17.5 mm x 90 mm x 60 mm
Compliance with standards: IEC/EN 61812-1, IEC/EN 60947-5-1
Weight: 0.07 kg
