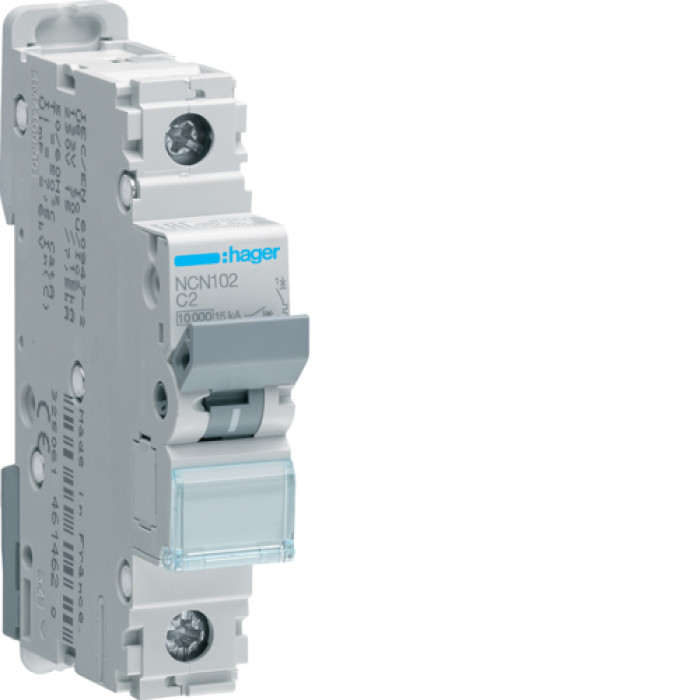

Hager 1P 10kA C-2A 1M Circuit Breaker, NCN102

Description Hager 1P 10kA C-2A 1M Circuit Breaker, NCN102

Device type: Automatic vimikach
Model: NCN102
Number of poles: 1
Nominal flow: 2 A
Connection characteristic: C
Nominal switching capacity (Icn): 10 kA
Rated operating voltage (Ue): 230 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Energy class: 3
Mechanical wear resistance: 20,000 cycles
Electrical wear resistance: 4,000 cycles
Clamp type: Gwent
Maximum span of hard cable: 25 mm²
Maximum cable span: 16 mm²
Recommended terminal tightening torque: 2.8 Nm
Mounting method: On DIN rail
Width: 1 module (18 mm)
Height: 83 mm
Glibin: 70 mm
Protection level IP (terminal): IP20
Protection level IP (with housing): IP40
Operating temperature range: -25 to +60 °C
Saving temperature range: -25 to +80 °C
Compliance with standards: EN 60898-1
