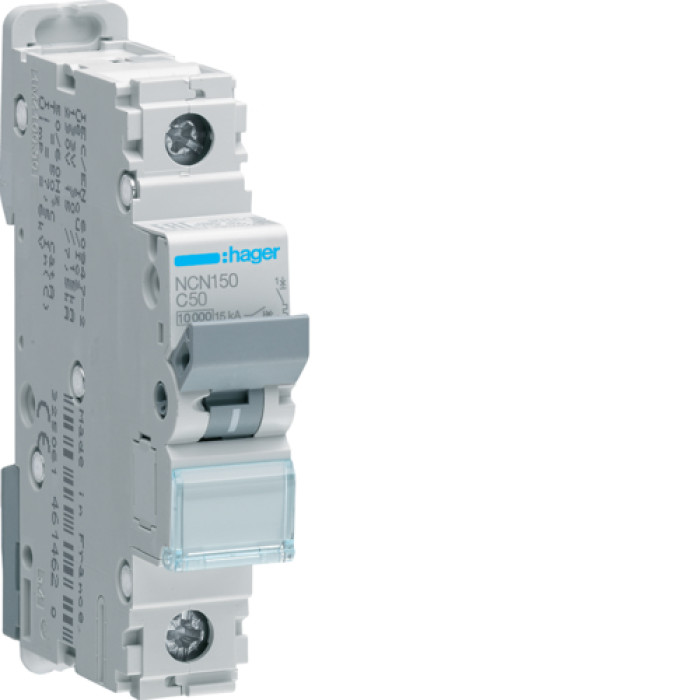

Hager 1P 10kA C-50A 1M Circuit Breaker, NCN150

Description Hager 1P 10kA C-50A 1M Circuit Breaker, NCN150

Vibrator: Hager
Series: NCN
Model: NCN150
Vimikachator type: Automatic vimikach
Number of poles: 1P
Nominal flow (In): 50 A
Specification characteristics: C
Nominal electrical power (Icn): 10 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal frequency: 50/60 Hz
Nominal impulse withstand voltage (Uimp): 4 kV
Nominal Insulation voltage (Ui): 500 V
Energy class: 3
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection stage (terminal): IP20
Protection stage (housing): IP40
Operating temperature range: -25 to +60 °C
Saving temperature: -40 to +70 °C
Maximum cable cut (hard): 25 mm²
Maximum cable cut (bend): 16 mm²
Torque Terminal tightening: 2.8 Nm
Mounting type: DIN rail
Modular width: 1 module
Height: 83 mm
Width: 17.5 mm
Depth: 70 mm
Compliance with standards: EN 60898-1
Type connections: Screw terminals
Upper/lower terminals: Cable or busbar
Overvoltage category: III
