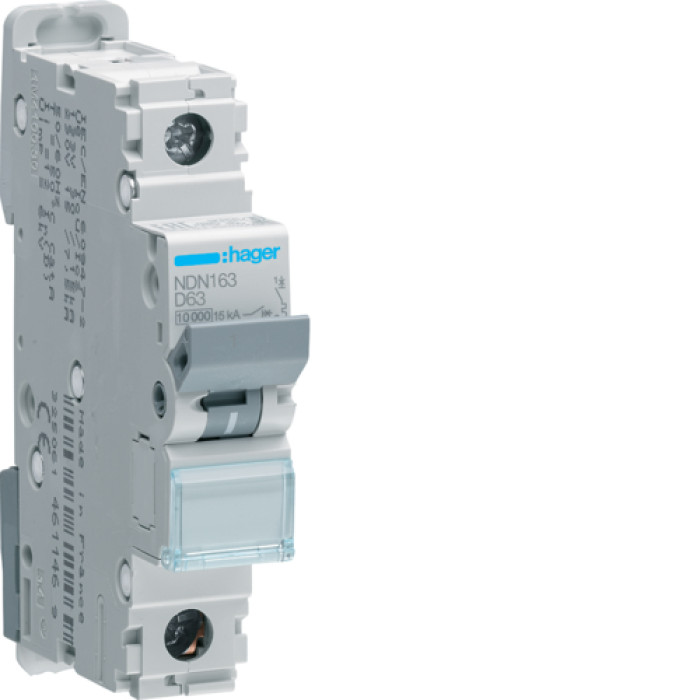

Hager 1P 10kA D-63A 1M Circuit Breaker, NDN163

Description Hager 1P 10kA D-63A 1M Circuit Breaker, NDN163

Number of poles: 1P
Nominal voltage: 63 A
Specification characteristics: D
Nominal operating voltage (Icn): 10 kA
Nominal operating voltage (Ue): 230 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse vibration voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Width in modules: 1
Installation depth: 70 mm
Height: 83 mm
Width: 17.5 mm
Mounting method: DIN-rail
Protection level (with terminals): IP20
Protection stage (installations): IP40
Operating temperature range: -25 to 70 °C
Saving temperature range: -40 to 80 °C
Maximum overcut of hard conductor: 25 mm²
Maximum overcut of flexible conductor: 16 mm²
Terminal tightening torque: 2.8 Nm
Electrical wear resistance: 20000 cycles
Mechanical wear resistance: 20000 cycles
Energy transfer class: 3
Contact position indication: So
Overvoltage category: III
Compliance with standards: EN 60898-1
