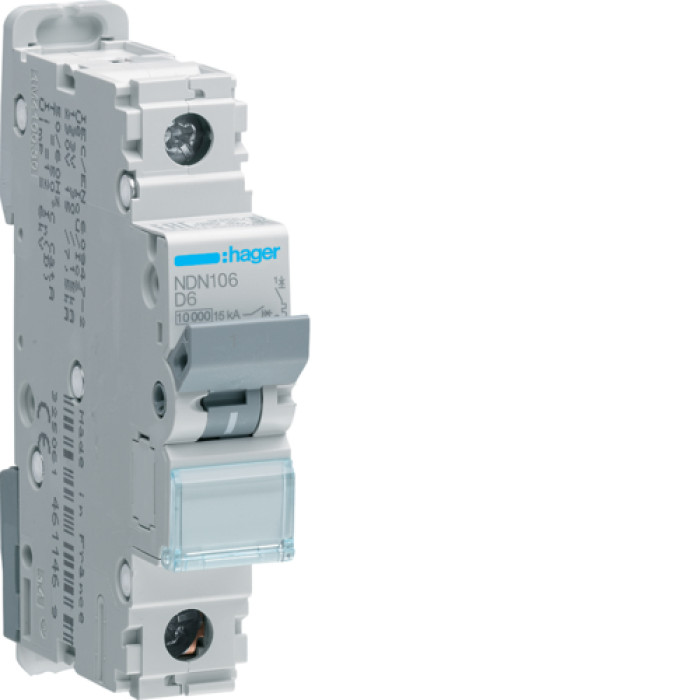

Hager 1P 10kA D-6A 1M Circuit Breaker, NDN106

Description Hager 1P 10kA D-6A 1M Circuit Breaker, NDN106

Virobu type: Automatic vimikach
Virobnik: Hager
Model: NDN106
Number of poles: 1P
Nominal flow (In): 6 A
Connection characteristic: D
Rated switching capacity (Icn): 10 kA
Nominal operating voltage (AC): 230/400 V
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Type sprayer: Thermomagnetic
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Crossbar connects conductors (hard): 1-25 mm²
Retin connects conductors (bend): 1-16 mm²
Terminal tightening torque: 2.8 Nm
Width: 1 module
Mounting type: DIN rail
Protection step (side terminal): IP20
Operating temperature: -25 to +60 °C
Temperature Saving: From -40 to +80 °C
Standard: IEC/EN 60898-1
