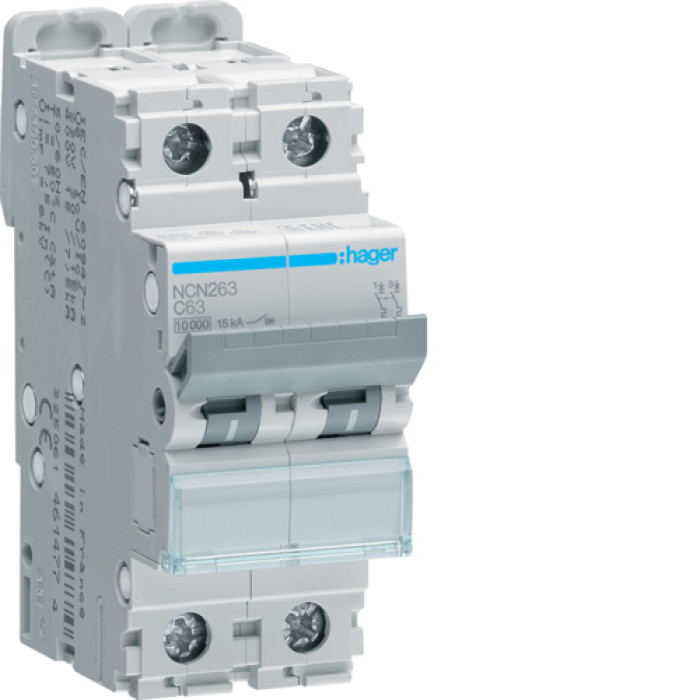

Hager 2P 10kA C-63A 2M Circuit Breaker, NCN263

Description Hager 2P 10kA C-63A 2M Circuit Breaker, NCN263

Number of poles: 2P
Nominal voltage (In): 63 A
Voltage characteristics: C
Nominal voltage (Icn): 10 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse withstand voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Energy class: 3
Electrical wear resistance: 20000 cycles
Mechanical durability: 20,000 cycles
Operating temperature range: -25 to +60 °C
Saving temperature range: -25 to +80 °C
Connection type: screw terminals
Maximum overcut of wire conductors: 25 mm²
Maximum overcut of hard conductors: 35 mm²
Clamp tightening torque: 2.8 Nm
Mounting type: DIN rail
Mount width: 2 modules (35 mm)
Step zakhistu (klem): IP20
Protection level (in housing): IP40
Overvoltage level: 2
Overvoltage category: III
Maximum altitude above sea level: 2000 m
Voltage standard: EN 60898-1
Vtrata pressure per pole (at In): ~7.5 W
