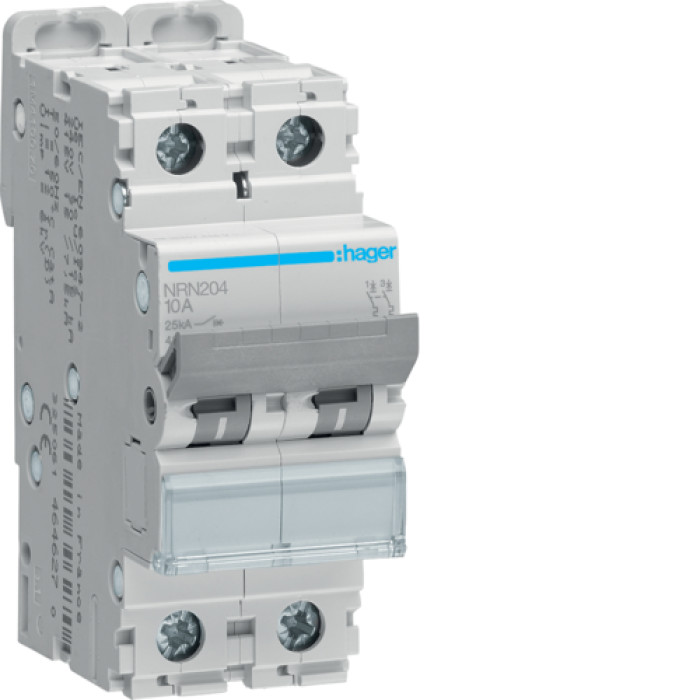

Hager 2P 25kA C-4A 2M Circuit Breaker, NRN204

Description Hager 2P 25kA C-4A 2M Circuit Breaker, NRN204

Virobnik: Hager
Model: NRN204
Device type: Automatic vimikach
Number of poles: 2P
Nominal flow (In): 4 A
Design characteristic (curve): C
Nominal voltage (Icn): 25 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal impulse voltage (Uimp): 4 kV
Maximum operating voltage: 440 V AC
Frequency: 50/60 Hz
Width in DIN modules: 2
Intermediate class energy: 3
Protection level (housing): IP40
Protection level (clem): IP20
Terminal type: Gvintovi
Maximum conductor overcut (hard): 25 mm²
Maximum conductor overcut (bend): 16 mm²
Terminal tightening torque: 2.8 Nm
Operating temperature range: -25 to +60 °C
Temperature range: -40 to +80 °C
Electrical wear resistance: 10,000 cycles
Mechanical Wear resistance: 20,000 cycles
Standard: EN 60898-1
Overvoltage category: III
Magnetic release range: 5 to 10 x In
Thermal release range (not specified): 1.13 x In
Thermal release range (specified): 1.45 x In
