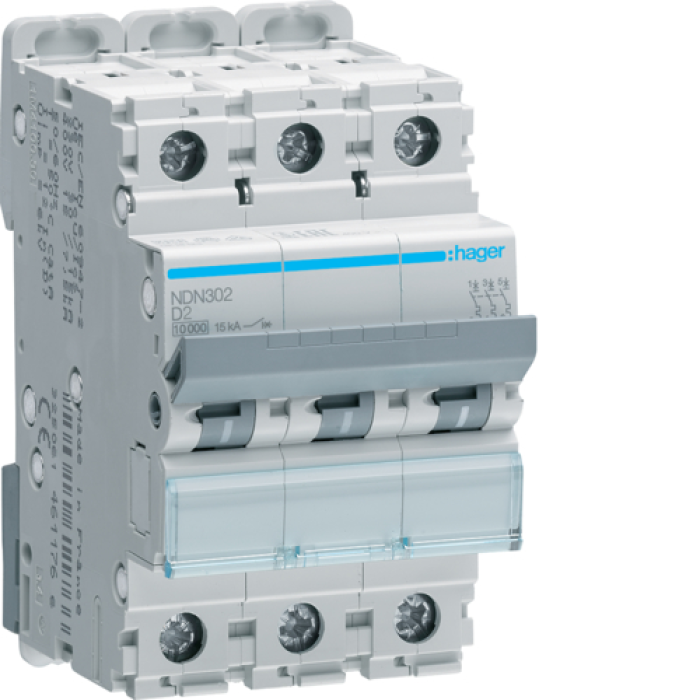

Hager 3P 10kA D-2A 3M Circuit Breaker, NDN302

Description Hager 3P 10kA D-2A 3M Circuit Breaker, NDN302

Brand: Hager
Model: NDN302
Device type: Automatic vimikach
Series: N
Number of poles: 3
Nominal flow (In): 2 A
Connection characteristic: D
Rated switching capacity (Icn): 10 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal frequency: 50/60 Hz
Jet exchange class: 3
Nominal impulse voltage (Uimp): 4 kV
Voltage Isolation (Ui): 500 V
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection level IP (zaskachi): IP20
Protection level IP (housing): IP40
Cross-section of the connected wire conductor: 1 - 16 mm²
Overcut of the connected hard conductor: 1 - 25 mm²
Torque of screw clamps: 2.8 Nm
Operating temperature: -25...+70 °C
Storage temperature: -40...+80 °C
Width: 3 modules (53.25 mm)
Height: 83 mm
Depth (from DIN rail): 70 mm
Vaga: 0.37 kg
Mounting type: DIN rail EN 60715
Compliance with standards: EN 60898-1
Clamp type: Gwent
Clip type: Bi-Connect (double-sided)
Possibility of two-way connection of life: So
Indication of contact position: Yes (red-colored / green-vimkneno)
Overvoltage category: III
