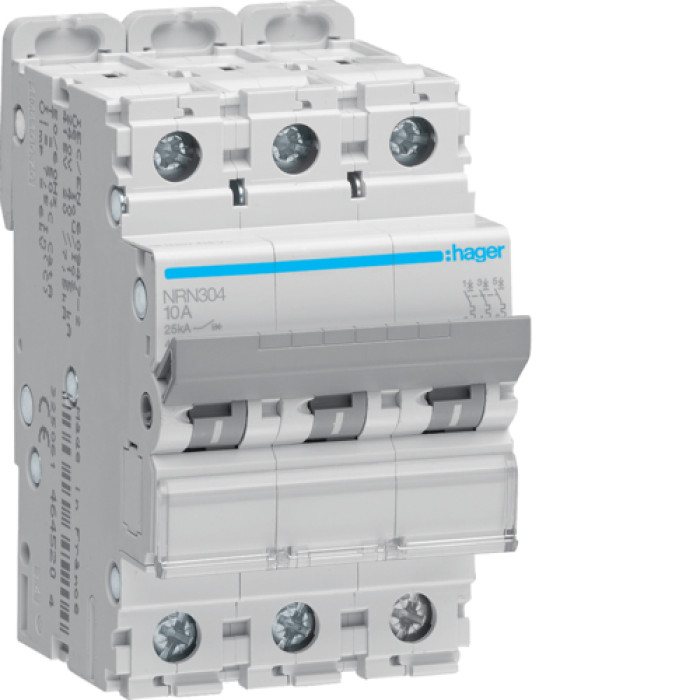

Hager 3P 25kA C-4A 3M Circuit Breaker, NRN304

Description Hager 3P 25kA C-4A 3M Circuit Breaker, NRN304

Device type: Automatic vimikach
Number of poles: 3P
Nominal flow: 4 A
Application characteristics: C
Nominal limiting voltage (Icu): 25 kA
Nominal operating voltage (Ics): 25 kA
Width: 3 modules
Nominal operating voltage of the exchanger (Ue): 400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 6 kV
Frequency: 50/60 Hz
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection level IP (terminal): IP20
Protection level IP (housing): IP40
Maximum span of the connected conductor (flexible): 16 mm²
Maximum span of the connected conductor (hard): 25 mm²
Terminal tightening torque: 2.8 Nm
Mounting method: On DIN rail
Compliance with standard: IEC/EN 60947-2
Energy class: 3
Operating temperature range: -25...+70 °C
Temperature range: -40...+80 °C
Terminal type: Gwent
Mechanical indication of contact position: So (red/green)
Possibility of filling: So
Mass: 0.36 kg
Height: 83 mm
Width: 53 mm
Glibin: 70 mm
Installation position: Be-yaka
