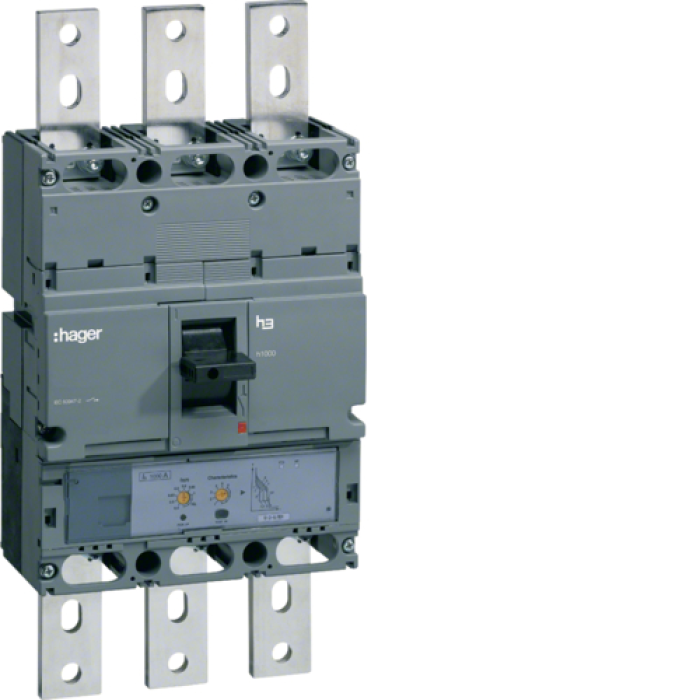

Hager H1000 Circuit Breaker. In=1000A. 3 points, 70kA. LSI, HEE970H

Description Hager H1000 Circuit Breaker. In=1000A. 3 points, 70kA. LSI, HEE970H

Nominal flow: 1000 A
Number of poles: 3
Spitter type: Electronic (LSI)
Rated limit switching capacity (Icu) at 400 V AC: 70 kA
Rated limit switching capacity (Icu) at 690 V AC: 45 kA
Rated operating switching capacity (Ics) at 400 V AC: 70 kA
Rated operating switching capacity (Ics) at 690 V AC: 45 KA
Nominal operating voltage (Ue): 230/400 V AC
Nominal operating voltage (Ue): 400/415 V AC
Nominal operating voltage (Ue): 500 V AC
Nominal operating voltage (Ue): 690 V AC
Nominal insulation voltage (Ui): 1000 V AC
Nominal impulse voltage (Uimp): 8 kV
Nominal frequency: 50/60 Hz
Wiki category: B
Electric Wear resistance: 5000 cycles
Mechanical wear resistance: 10,000 cycles
Protection level: IP20
Operating temperature range: -25°C to +70°C
Saving temperature range: -40°C to +85°C
Range of adjustment of the damper (Ir): 0.4 - 1 x In
Range of regulation of the time of trimming during revantation (Tr): 0.5 - 20 s
Adjustment range Short circuit protection (Isd): 1.5 - 10 x Ir
Short-circuit shutdown time adjustment range (Tsd): 0 - 0.5 s
Adjustment range for short-circuit protection (Ii): 2 - 15 x In
Installation type: Stationary
Maximum span of connecting cables: 4 x 185 mm²
Compliance with standards: IEC/EN 60947-2
Class: 3
Installation height: up to 2000 m
