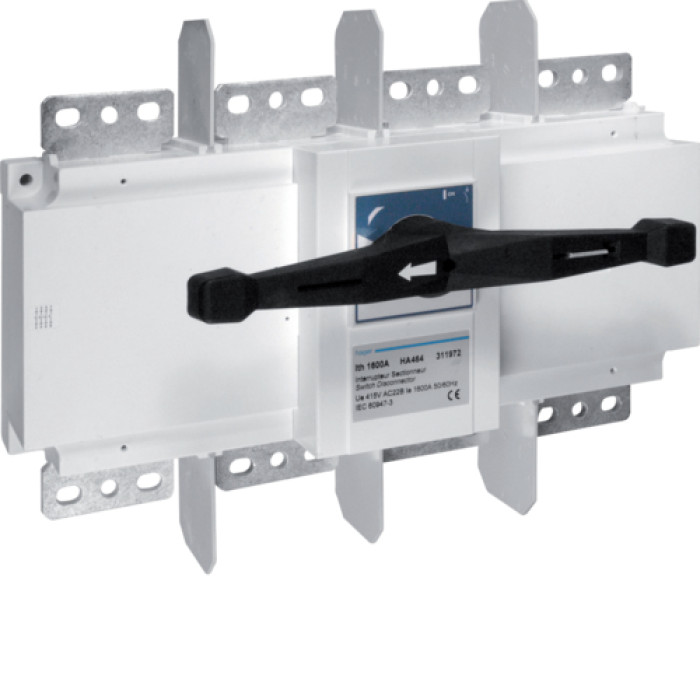

Hager load switch, enclosure up to 2x300mm2, 4p 800A, HA460

Description Hager load switch, enclosure up to 2x300mm2, 4p 800A, HA460

Type of power supply: Vimikach navantazhennya
Vyrobnik: Hager
Model/Article: HA460
Nominal flow In: 800 A
Number of poles: 4P
Nominal operating voltage Ue (AC): 400 V / 690 V
Nominal insulating voltage Ui: 1000 V
Nominal impulse vistiming voltage Uimp: 8 kV
Category of insulation (AC): AC-22A
Frequency: 50/60 Hz
Nominal short-hour vitrimovana building Icw (1c): 30 kA
Nominal short-circuit capacity Icc: 50 kA
Nominal current at 400V (AC-23A): 250 kW
Maximum overcut of connected conductor: 2 x 300 mm²
Terminal type: Screw
Terminal tightening torque: 30 Nm
Mounting type: Housing
Protection level IP: IP65
Protection stage IK: IK08
Case material: Metal
Case color: Gray (RAL) 7035)
Handle color: Chervony
Ceramic type: Rotary handle
Position "HIGH": 0
Position "LOGGED": I
Mechanical wear resistance: 10000 cycles
Electrical wear resistance (AC-22A): 3000 cycles
Operating temperature: -25°C to +70°C
Saving temperature: -40°C to +80°C
Altitude above sea level: Up to 2000 m
Possibility of locking in the “LOCKED” position: So
Height: 600 mm
Width: 400 mm
Depth: 250 mm
Weight: 20 kg
Compliance with standards: IEC/EN 60947-3
