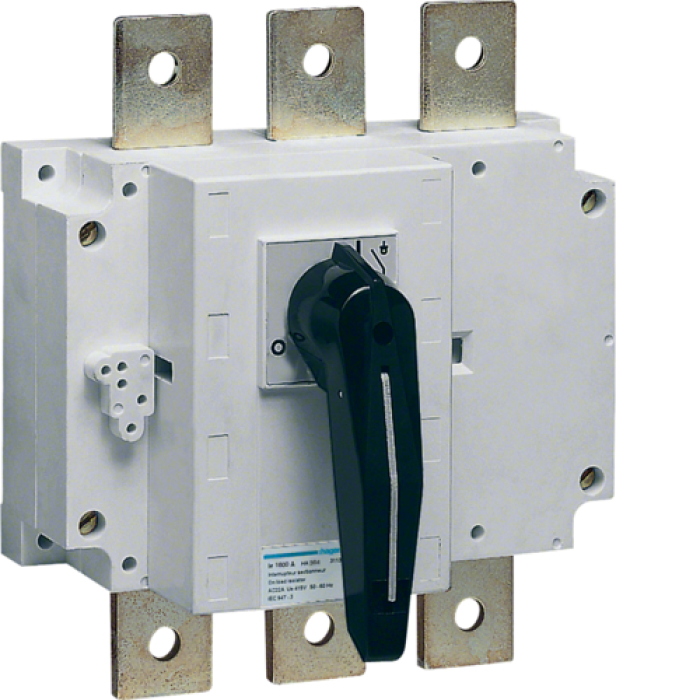

Hager load switch, housing 3-pole 2000A, HA365

Description Hager load switch, housing 3-pole 2000A, HA365

Virobnik: Hager
Product code: HA365
Type of extension: Vimikach navantazhennya
Number of poles: 3
Structurally viconanny: Korpusny
Nominal flow (In): 2000 A
Nominal operating voltage (Ue): 690 V AC
Nominal insulation voltage (Ui): 1000 V
Nominal impulse voltage (Uimp): 8 kV
Nominal frequency: 50/60 Hz
Drying category: AC-23B
Nominal short-hour Vitrivanium strum (Icw): 50 kA for 1 s
Nominal peak vitrification flow (Ipk): 105 kA
Electrical wear resistance: 2000 cycles
Mechanical wear resistance: 8000 cycles
Protection level (IP): IP20
Operating temperature range: -25 °C to +70 °C
Saving temperature range: -40 °C to +85 °C
Appearance standard: IEC/EN 60947-3
Connection method: Clamps for connecting busbars or cables
Installation method: On a mounting plate
Overall width: 280 mm
Overall height: 420 mm
Overall depth: 150 mm
Waga: 18 kg
