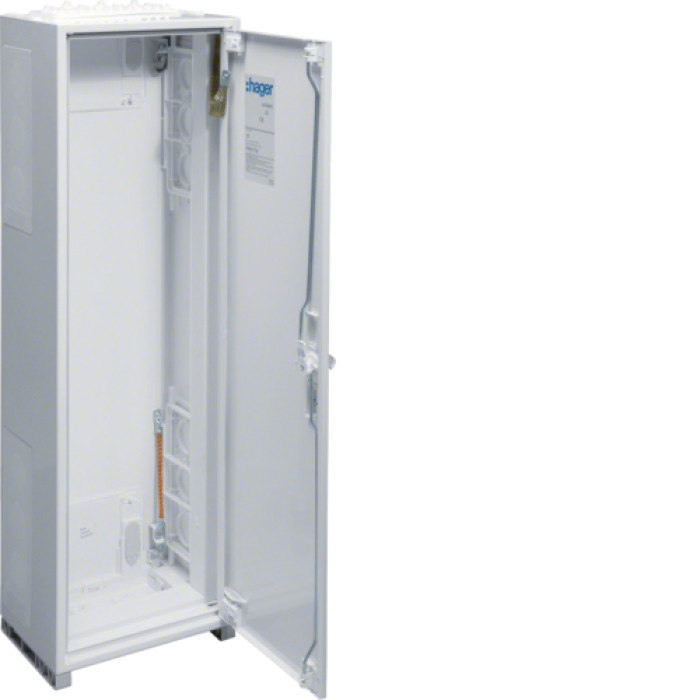

Univers IP44/II shield 1700x300x205, 1 section

Description Univers IP44/II shield 1700x300x205, 1 section

Type of virobu: Shafa loose
Series: Univers
Article code: FP11SN2
Protection level IP: IP44
Electrical safety class: II (super insulation)
Installation type: Vbudovaniye
Height: 1700 mm
Width: 300 mm
Glibina: 205 mm
Number of sections: 1
Housing material: Sheet steel
Door material: Sheet steel
Color: Light gray (RAL 7035)
Coating type: Powder coated
Type doors: Sutsilni
Number of doors: 1
Door opening angle: 120°
Lock type: Rotary handle with key
Resistance to mechanical impacts (IK code): IK08
Number of vertical mounting blocks (fields): 11
Number of horizontal modules (18 mm) for one field: 12
Total nominal capacity of modules (18 mm): 132
Possibility of reversible door installation: Yes
Operating temperature: -25 °C to +40 °C
Storage temperature: -40 °C to +70 °C
Nominal insulation voltage (Ui): 1000 V changeover
Nominal impulse voltage (Uimp): 8 kV
Compliance with standards: EN 62208, EN 61439-1/-2
Thickness of sheet steel: 1.0 mm
The presence of a grounding point: So
Possibility of installing multimedia equipment: So
