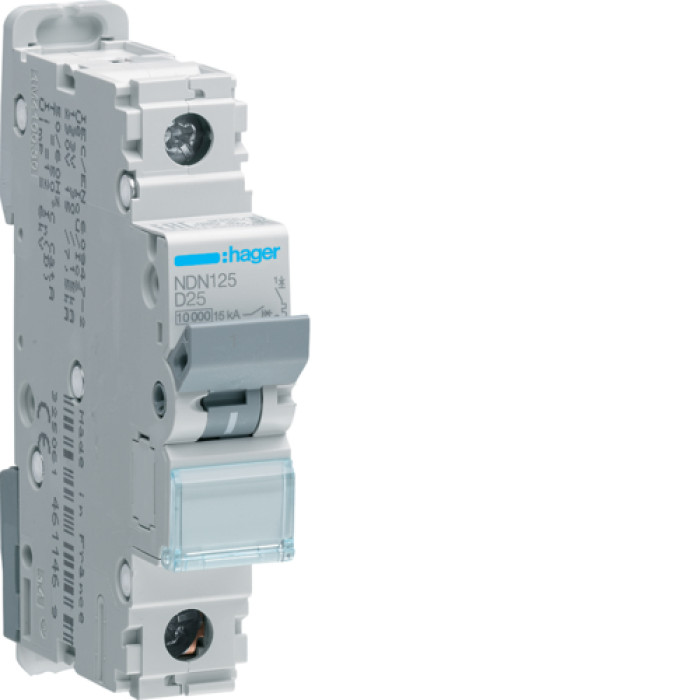

Hager 1P 10kA D-25A 1M Circuit Breaker, NDN125

Description Hager 1P 10kA D-25A 1M Circuit Breaker, NDN125

Virobnik: Hager
Model/Series: NDN125
Number of poles: 1P
Nominal flow: 25 A
Connection characteristic: D
Nominal limiting voltage: 10 kA
Nominal operating voltage of the exchanger: 230/400 V AC
Type of generator: AC
Nominal frequency: 50/60 Hz
Module capacity (width): 1
Energy transfer class: 3
Electrical wear resistance: 10000 cycles
Mechanical wear resistance: 20000 cycles
Protection stage (housing): IP40
Protection stage (terminal): IP20
Beading of the connected cable (hard): 1-25 mm²
Beading connected cable (bundle): 1-16 mm²
Terminal type: Tunnel
Mounting type: DIN-rail
Operating temperature range: -25 to +70 °C
Saving temperature range: -40 to +80 °C
Standard: EN 60898-1
Category overvoltage: III
Step of obstruction: 2
Maximum installation height: 2000 m
