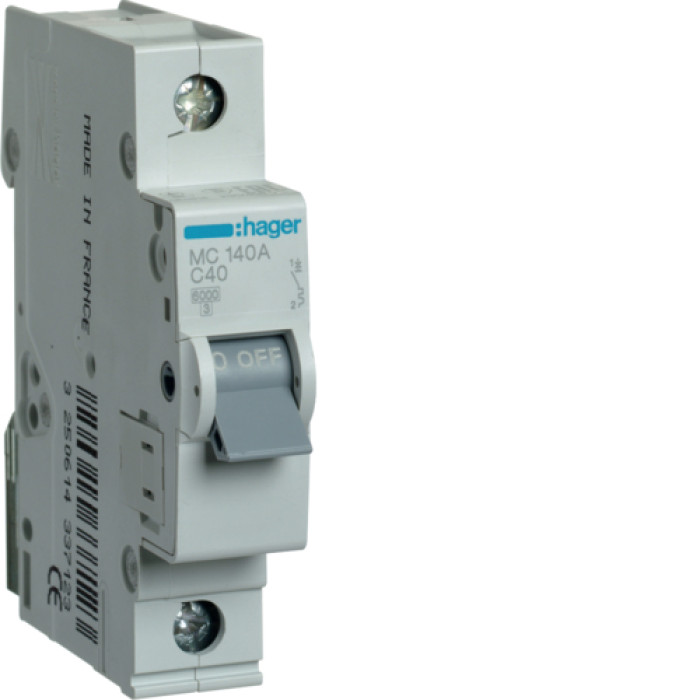

Hager 1P 6kA C-40A 1M Circuit Breaker, MCN140

Description Hager 1P 6kA C-40A 1M Circuit Breaker, MCN140

Model name: MCN140
Device type: Automatic vimikach
Number of poles: 1
Nominal flow: 40 A
Application characteristics: C
Nominal building capacity: 6 kA
Nominal operating voltage of the exchanger Ue: 230/400 V
Nominal frequency: 50/60 Hz
Width: 1 module
Energy class: 3
Electrical wear resistance: 10,000 cycles
Mechanical Wear resistance: 20,000 cycles
Protection level IP: IP20
Congestion step: 2
Maximum conductor overcut (hard): 25 mm²
Maximum conductor overcut (bend): 16 mm²
Terminal tightening torque: 2.8 Nm
Operating temperature range: -25 to +60 °C
Saving temperature range: -25 to +80 °C
Appearance standard: EN 60898-1
Mounting method: DIN rail
Contact position indicator: So (red/green)
Terminal type: Gvintov
