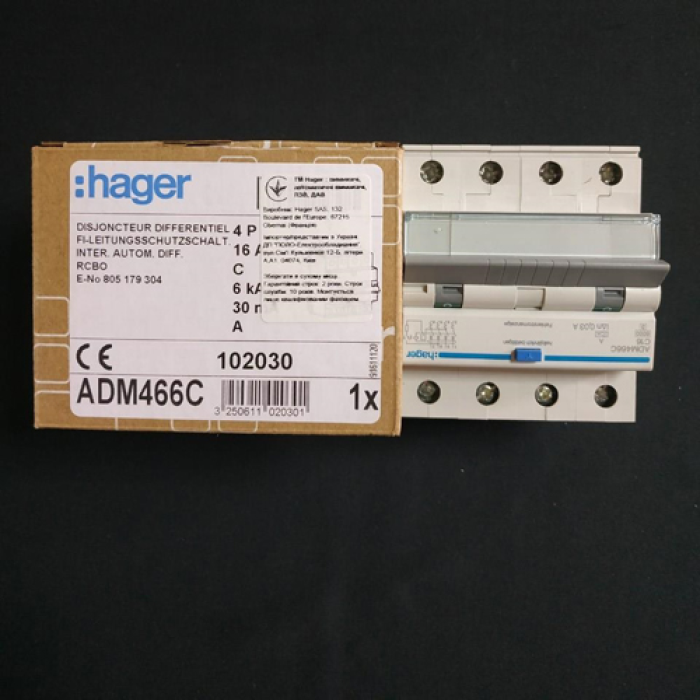

Hager ADM466C residual current circuit breaker 4P 6kA C-16A 30mA A

Description Hager ADM466C residual current circuit breaker 4P 6kA C-16A 30mA A

Type of attachment: Difavtomat
Virobnik: Hager
Series: ADM
Model: ADM466C
Number of poles: 4P
Nominal flow: 16 A
Connection characteristic: C
Nominal differential flow: 30 mA
Type of differential strum: A
Nominal switching capacity: 6 kA
Nominal operating voltage: 400 V AC
Nominal insulating voltage: 500 V
Nominal impulse vitrimuvan voltage: 4 kV
Frequency: 50/60 Hz
Energy exchange class: 3
Overvoltage category: III
Resistance to pulse current (8/20 µs): 250 A
Electrical life: 10000 cycles
Mechanical life: 20,000 cycles
Width in modules: 4
Mounting method: On DIN rail
Maximum overcut of hard conductor: 25 mm²
Maximum overcut of wire conductor: 16 mm²
Terminal tightening torque: 2.8 Nm
Protection level: IP20
Operating temperature: -25 to +40 °C
Storage temperature: -40 to +70 °C
Height: 83 mm
Width: 70 mm
Glibin: 70 mm
Vaga: 0.47 kg
Compliance with standards: IEC 61009-1, EN 61009-1
