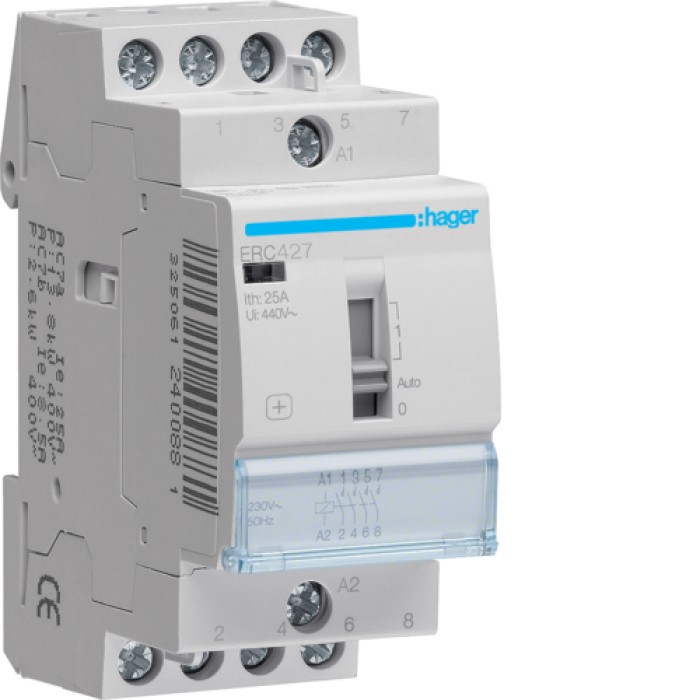

Hager contactor, manually operated, 25A, 2 NO + 2 NC, 230V ERC427

Description Hager contactor, manually operated, 25A, 2 NO + 2 NC, 230V ERC427

Article: ERC427
Nominal flow (AC-1): 25 A
Nominal voltage: 230 V AC
Frequency: 50/60 Hz
Contact configuration: 2 NV + 2 NC
Nominal voltage Insulation (Ui): 400 V
Nominal impulse voltage (Uimp): 4 kV
Vicoristan categories: AC-1, AC-7a, AC-7b
Combined coil tension (on): 8.5 VA
Current coil tension (morning): 2.7 VA
Mechanical durability: 1,000,000 cycles
Electrical durability (AC-7a): 100,000 cycles
Protection level: IP20
Retin of the connected conductor (hard): 1.5 - 6 mm²
Belt of the connecting conductor (flexible): 1 - 4 mm²
Width: 2 modules
Mounting: DIN-rail
Operating temperature: -10...+50 °C
Saving temperature: -40...+70 °C
Availability of manual cleaning: So
Type product: Contactor
Virobnik: Hager
