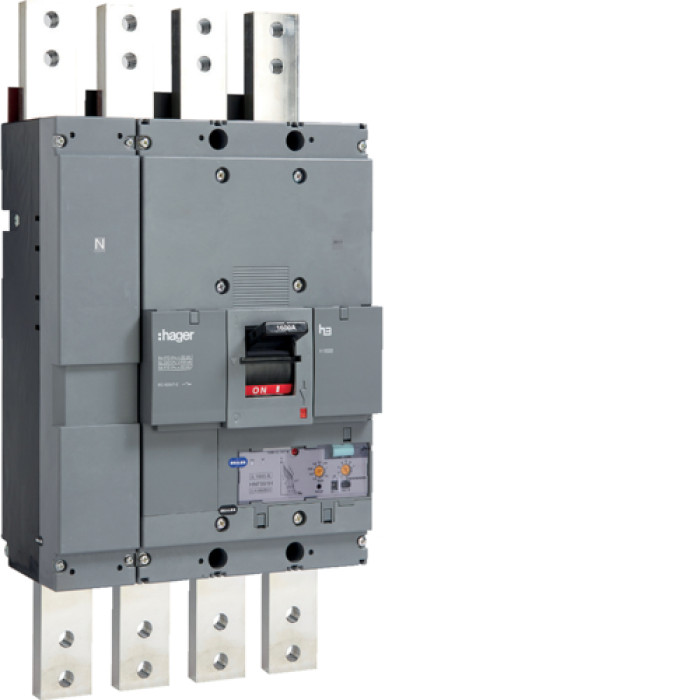

Hager H1600 Circuit Breaker. In=1600A. 4 points, 50kA. LSI, HNF991H

Description Hager H1600 Circuit Breaker. In=1600A. 4 points, 50kA. LSI, HNF991H

Product type: Automatic dispenser
Vyrobnik: Hager
Series: H
Model: H1600
Article: HNF991H
Number of poles: 4P
Nominal flow (In): 1600 A
Nominal operating voltage (Ue): 400/415 V AC
Nominal insulating voltage (Ui): 800 V
Nominal impulse voltage (Uimp): 8 kV
Nominal limiting withstand voltage (Icu) at 400/415 V AC: 50 kA
Nominal Operating capacity (Ics) at 400/415 V AC: 50 kA
Spitter type: Electronic
Functions of the sputterer: LSI
Protection from revantage (L): So
Adjustment of the flow of protection from perevantazheniya (Ir): Regulation
Protection against short-term flickering with short-circuiting (S): So
Adjusting the flow of protection against short-circuiting against short-circuiting (Isd): Regulations
Protection against short-circuiting without short-circuiting (I): So
Adjusting the strum zakhistu in a short Tampering without display (Ii): Regulation
Victory category: A
Standards: IEC/EN 60947-2
Nominal frequency: 50/60 Hz
