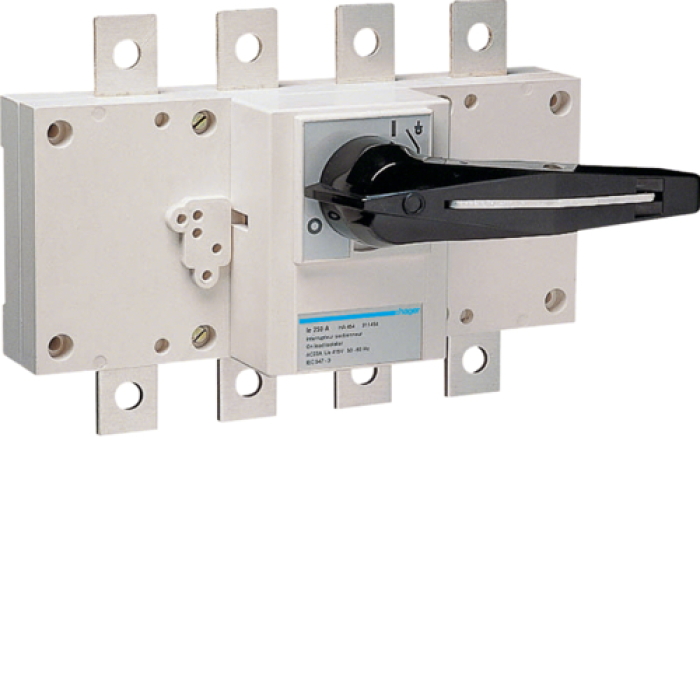

Hager load switch, enclosure up to 95 mm2, 4 pole 200 A, HA453

Description Hager load switch, enclosure up to 95 mm2, 4 pole 200 A, HA453

Type of device: Vimikach navantazhennya
Vyrobnik: Hager
Article: HA453
Series: HA
Number of poles: 4P
Nominal flow: 200 A
Nominal operating voltage (Ue): 690 V AC
Nominal insulation voltage (Ui): 750 V
Nominal impulse voltage (Uimp): 8 kV
Standing category: AC-22A
Nominal short-hour vitrification flow (Icw): 3 kA (at 1 c)
Nominal drain short circuit: 50 kA
Maximum conductor span: 95 mm²
Connection type: Screw terminals
Mounting type: Mounting plate
Mechanical wear resistance: 10000 cycles
Electrical Wear resistance (AC-22A): 1500 cycles
Protection stage (terminal): IP20
Protection stage (front): IP30
Operating temperature range: -25 to +50 °C
Saving temperature range: temperature -40 to +70 °C
Videcity standards: EN 60947-3, IEC 60947-3
Blocking capability: Yes (in the “Locked” position)
