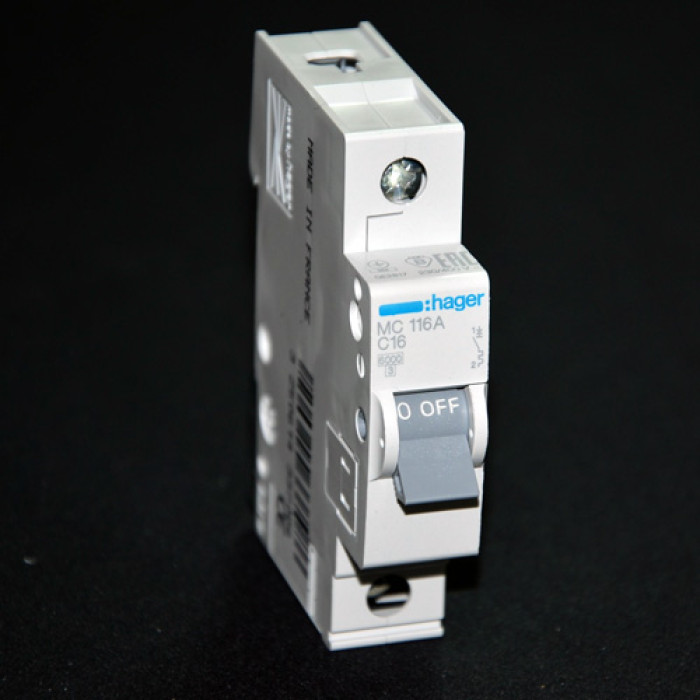

Hager MCN116 circuit breaker 1P 6kA C-16A 1M

Description Hager MCN116 circuit breaker 1P 6kA C-16A 1M

Series: MCN
Model: MCN116
Type of automatic vimic download: Modular
Number of poles: 1P
Nominal flow: 16 A
Application characteristics: C
Rated operating voltage Ue: 230/400 V AC
Nominal switching capacity Icn: 6 kA
Number of modules: 1
Voltage type: AC
Frequency: 50/60 Hz
Isolation voltage Ui: 500 V
Nominal impulse vitrimuvan voltage Uimp: 4 kV
Protection level: IP20
Congestion step: 2
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Mounting type: DIN rail
Terminal type: Gvintovi
Cross-section of the connected conductor (bend): 1-16 mm²
Cutting the connected conductor (hard): 1-25 mm²
Terminal tightening torque: 2.8 Nm
Pressure per pole: 1.5 W
Overvoltage category: III
Energy class: 3
Height: 83 mm
Width: 17.5 mm
Glibin: 70 mm
