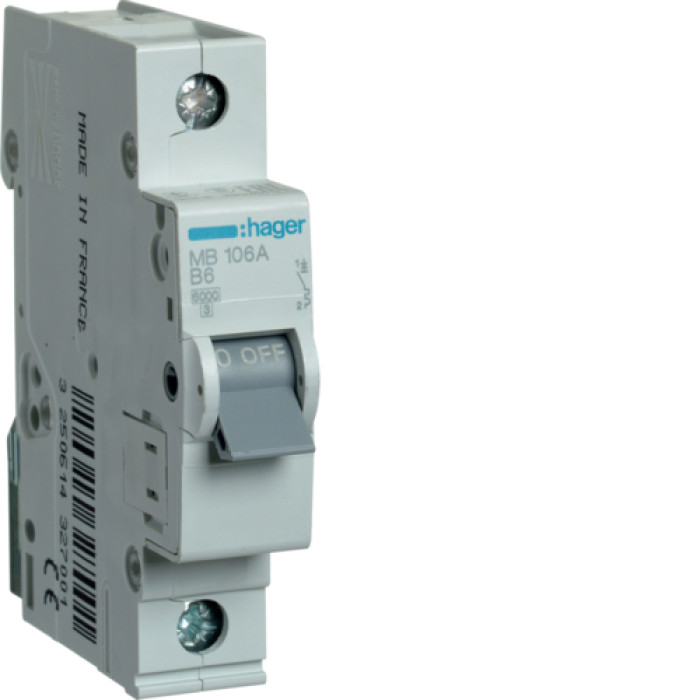

Hager 1P 6kA B-6A 1M Circuit Breaker, MBN106

Description Hager 1P 6kA B-6A 1M Circuit Breaker, MBN106

Type of vibrator: Automatic vibration generator
Virobnik: Hager
Model: MBN106
Number of poles: 1P
Nominal flow: 6 A
Specification characteristics: B
Nominal vibration capacity: 6 kA
Nominal operating voltage: 230 V alternating current
Nominal insulating voltage: 500 V
Nominal impulse vitrium voltage: 4 kV
Frequency: 50/60 Hz
Class jet exchange: 3
Maximum overcut of the connected conductor (hard): 25 mm²
Maximum overcut of the connected conductor (flexible): 16 mm²
Terminal tightening torque: 2.8 Nm
Security level (terminal): IP20
Protection level (device after installation): IP40
Mounting type: DIN rail
Module thickness (17.5 mm): 1
Electrical wear resistance: 10000 cycles
Mechanical Wear resistance: 20,000 cycles
Range operating temperatures: from -25 to +70 °C
Saving temperature range: from -40 to +80 °C
Congestion level: 2
Installation height above sea level: up to 2000 m
Compliance with standards: IEC/EN 60898-1
