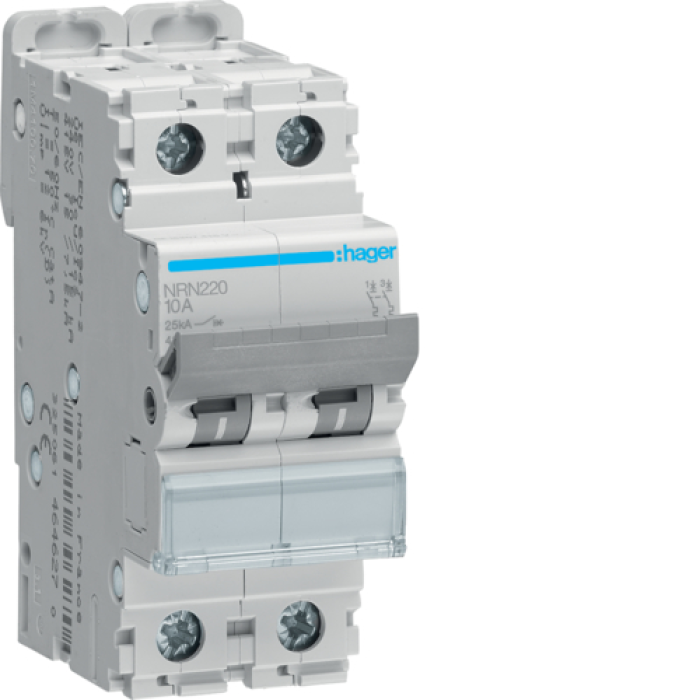

Hager 2P 25kA C-20A 2M Circuit Breaker, NRN220

Description Hager 2P 25kA C-20A 2M Circuit Breaker, NRN220

Device type: Automatic vimikach
Virobnik: Hager
Article: NRN220
Number of poles: 2P
Nominal flow: 20 A
Application characteristics: C
Nominal short-circuit voltage (Icu): 25 kA
Operating voltage at short circuit (Ics): 25 kA
Modular width: 2 modules
Nominal operating voltage (Ue): 230 V AC / 400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Sputter type: Thermomagnetic
Frequency: 50/60 Hz
Energy class: 3
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection level IP: IP20
Operating temperature: -25°C to +70°C
Storage temperature: -40°C to +80°C
Maximum retin conductor to be connected (hard): 35 mm²
Maximum conductor strut that can be connected (flexible): 25 mm²
Terminal tightening torque: 2.8 Nm
Mounting type: DIN rail
Compliance with standards: EN 60898-1
Terminal type: Gvintovi
Terminals: Dual-functional (with the possibility of connecting a bus and a cable)
Indication of contact position: Red/green sign on important
Possibility of connecting additional data devices: So (additional contacts, independent distribution)
Installation instructions: Whatever
Housing material: Self-extinguishing thermoplastic
