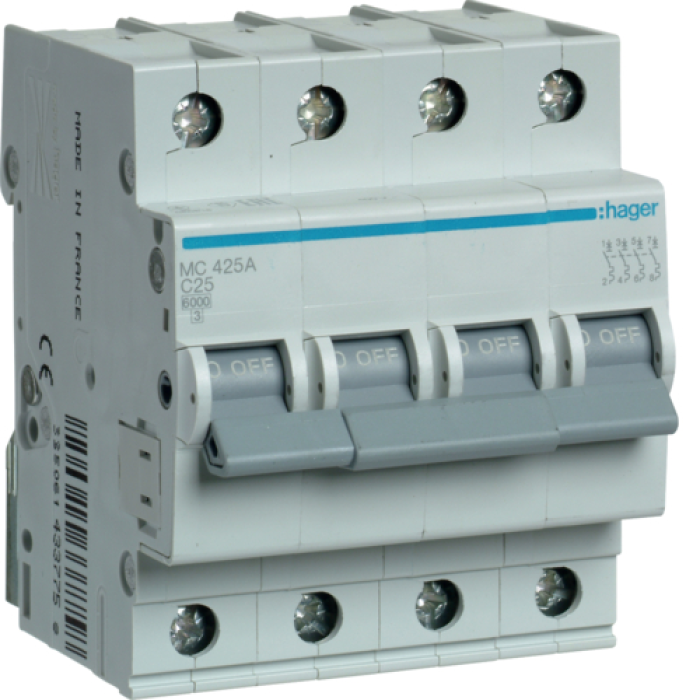

Hager 4P 6kA C-25A 4M Circuit Breaker, MCN425

Description Hager 4P 6kA C-25A 4M Circuit Breaker, MCN425

Number of poles: 4
Nominal flow: 25 A
Connection characteristic: C
Nominal switching capacity: 6 kA
Modular width: 4 modules
Nominal operating voltage: 230/400 V AC
Nominal insulation voltage: 500 V
Nominal impulse voltage: 4 kV
Nominal frequency: 50/60 Hz
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Mounting method: On DIN rail
The crossbar is connected to hard conductors: 1-25 mm²
Retin connects to flexible conductors: 1-16 mm²
Energy class: 3
Operating temperature range: -25 to +60 °C
Temperature range: -40 to +80 °C
Protection level IP: IP20
Step on the front side of the head: IP40
Moment Terminal tightening: 2.8 Nm
Sputter type: Thermomagnetic
Compliance with standards: IEC/EN 60898-1
Direct connection: Dovilniy
Possibility of installing additional accessories: Yes
Contact position indicator: Yes
Indicator of application behind the short flashing stream: Yes
