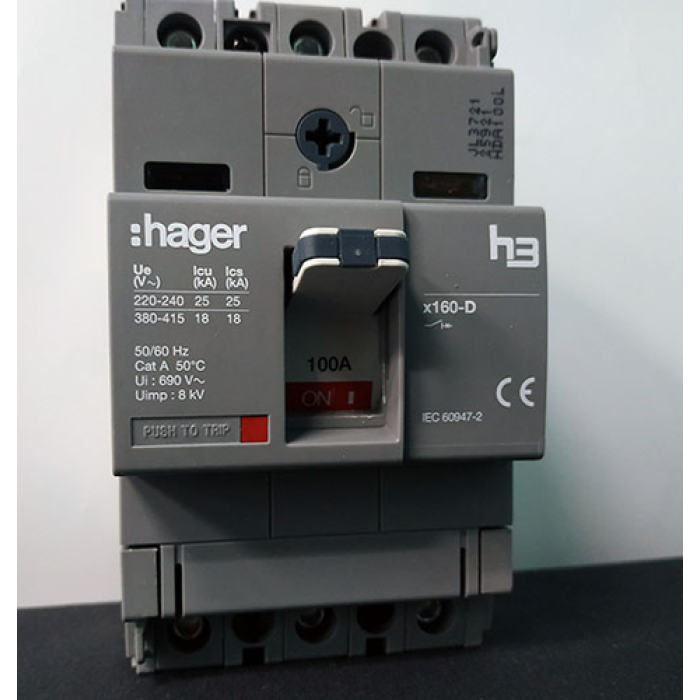

HDA100L, In=100A, 3p, 18kA, Hager x160 circuit breaker Hager

Description HDA100L, In=100A, 3p, 18kA, Hager x160 circuit breaker Hager

Virobu type: Automatic vimikach
Vyrobnik: Hager
Series: HDA
Model: HDA100L
Nominal flow (In): 100 A
Number of poles: 3
Nominal limiting voltage (Icu) at 400 V AC: 18 kA
Rated operating voltage (Ics) at 400 V AC: 18 kA
Overall frame flow: 160 A
Spray type: Thermomagnetic
Rated operating voltage (Ue): 400 V AC
Nominal insulating voltage (Ui): 690 V
Nominal impulse vistiming voltage (Uimp): 6 kV
Frequency: 50/60 Hz
Adjustment of thermal insulation (Ir): Fixed (1 x In)
Adjustment of electromagnetic sprayer (Im): Fixed (8...10 x In)
Protection level: IP20
Operating temperature: from -25 to +70 °C
Saving temperature: from -40 to +85 °C
Mechanical wear resistance: 10000 cycles
Electrical wear resistance: 3000 cycles
Standard: IEC/EN 60947-2
Mounting type: On a mounting panel
