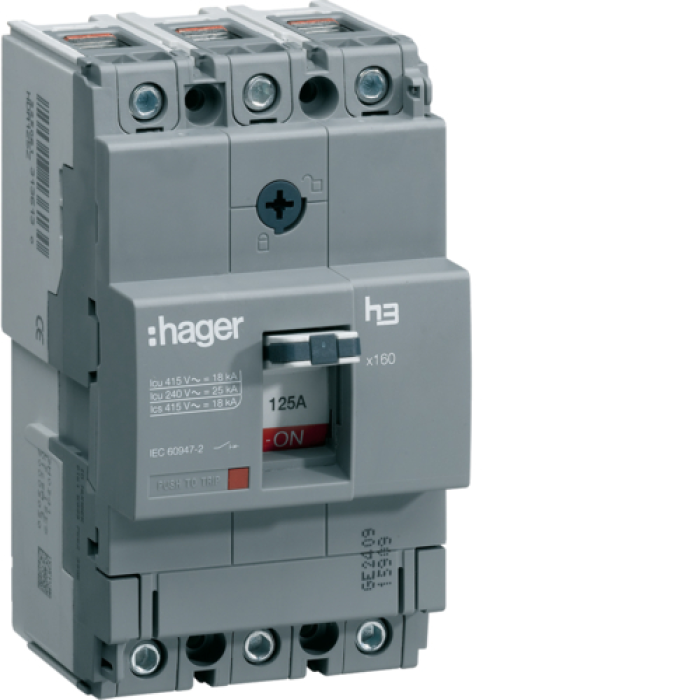

Description HDA125L, In=125A, 3p, 18kA, x160 Hager circuit breaker
Virobnik: HagerSeries: HDA
Model: HDA125L
Machine type: Automatic vimikach
Nominal flow (In): 125 A
Number of poles: 3
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 6 kV
Rated voltage (Icu) at 400V: 18 kA
Working history (Ics) at 400V: 18 kA
Overall size: 160 A
Sputter type: Thermomagnetic
Characteristics of opening: Fixed
Wiki category: A
Energy class: 3
Compliance with standards: IEC/EN 60947-2
Installation: On the mounting panel
Terminal protection level: IP20
Front panel protection level: IP30
Operating temperature range: -25...+70 °C
Frequency: 50/60 Hz
Maximum retin Connectable cables: 95 mm²
Maximum span of connected hard conductors: 120 mm²
