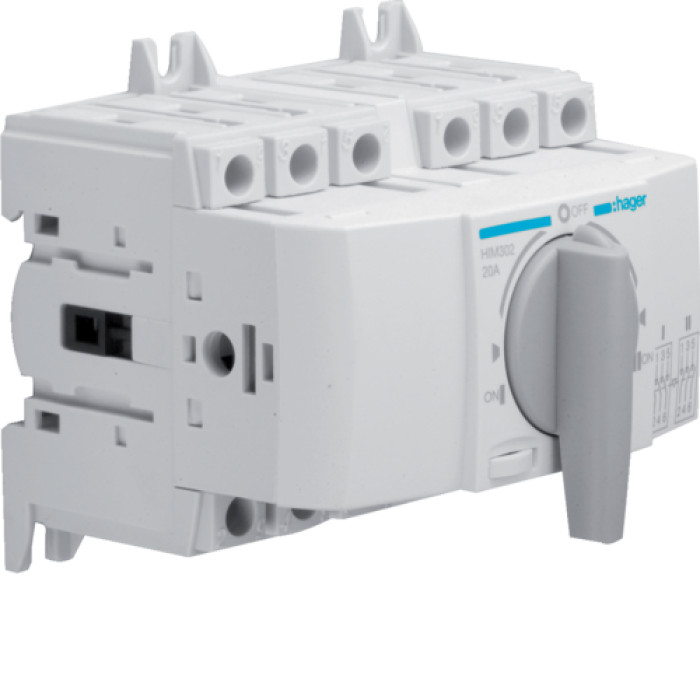

HIM302 Hager three-phase changeover switch 20A

Description HIM302 Hager three-phase changeover switch 20A

Virobnik: Hager
Model: HIM302
Type of attachment: Changeover switch
Number of poles: 3P
Nominal flow: 20 A
Nominal operating voltage (AC): 230/400 V
Nominal insulation voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 6 kV
Frequency: 50/60 Hz
Vikoristan category: AC-22A
Short-circuit washbasin: 50 kA (with gG/aM 20 A)
Mechanical wear resistance: 20,000 cycles
Electrical wear resistance: 3000 cycles
Number of pump positions: 3 (I-0-II)
Mounting type: DIN rail
Width in DIN modules: 3 modules
Crossing of the connected cable (hard): 1.5 - 16 mm²
Crossing of the connected cable (flexible): 1.5 - 10 mm²
Terminal type: Gvintovi
Protection level (front panel): IP20
Operating temperature: -20 to +50 °C
Storage temperature: -40 to +70 °C
Height: 83 mm
Width: 52.5 mm
Glibin: 70 mm
Compliance with standards: EN 60947-3; IEC 60947-3
