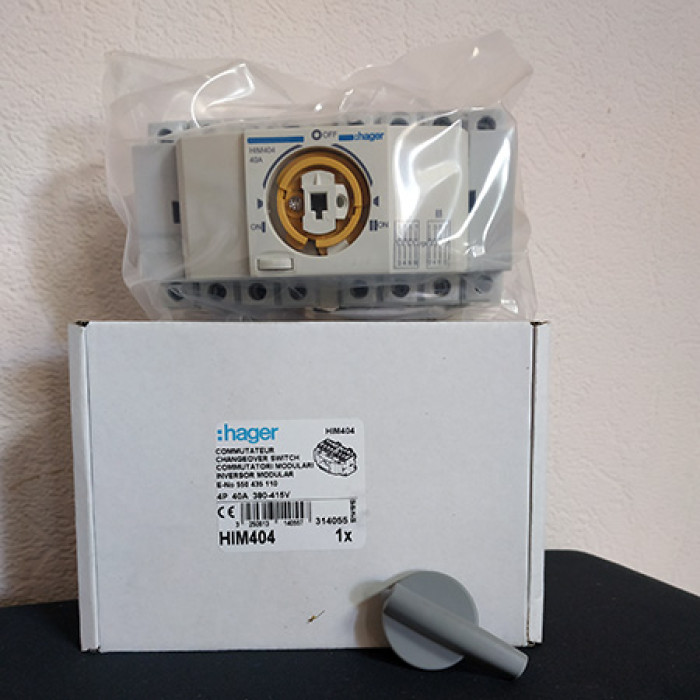

HIM404 Hager three-phase changeover switch 40A, 3P+N

Description HIM404 Hager three-phase changeover switch 40A, 3P+N

Type of attachment: Changeover switch
Virobnik: Hager
Model: HIM404
Nominal flow (In): 40 A
Number of poles: 4 (3P+N)
Number of phases: Triphasic
Number of positions: 3 (I-0-II)
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 6 kV
Wikoristan category: AC-22A
Frequency: 50/60 Hz
Mechanical wear resistance: 20,000 cycles
Electrical wear resistance: 1500 cycles (at 40 A, AC-22A)
Conductor crossbar (hard): 1.5 - 25 mm²
Conductor crossbar (bend): 1.5 - 16 mm²
Terminal tightening torque: 2.8 Nm
Width in modules: 4
Mounting type: DIN rail
Protection level: IP20
Operating temperature range: -20°C to +50°C
Standard: IEC/EN 60947-3
Possibility of blocking: Yes (at the position "0")
