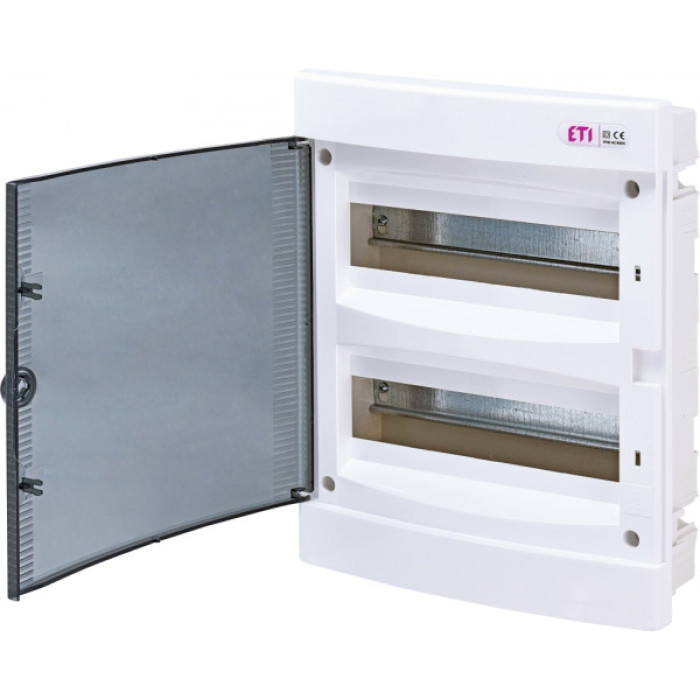

Internal distribution board ECM 24PT (24 mod. transparent doors) ETI

Description Internal distribution board ECM 24PT (24 mod. transparent doors) ETI

Installation type: Vbudovaniye
Number of modules: 24
Number of rows: 2
Body material: ABS plastic
Door material: Clear polycarbonate
Protection level IP: IP40
Electrical insulation class: II
Nominal voltage: 230/400 V AC
Nominal flow: 63 A
Operating temperature: -5°C to +40°C
Storage temperature: -25°C to +60°C
Overall dimensions (HxWxD): 380x310x97 mm
Dimensions for installation (HxWxD): 350x280x80 mm
Body color: White (RAL 9003)
Availability of DIN rail: Yes
Number of DIN rails: 2
Availability of N/PE terminal blocks: Yes
Number of terminal clamps N: 1x12
Number of terminal clamps PE: 1x12
Door type: Slotted, with possibility of re-hanging
Castle visibility: No
Durability up to impacts: IK07
Certification: CE, EN 60670-24
DIN rail material: Galvanized steel
