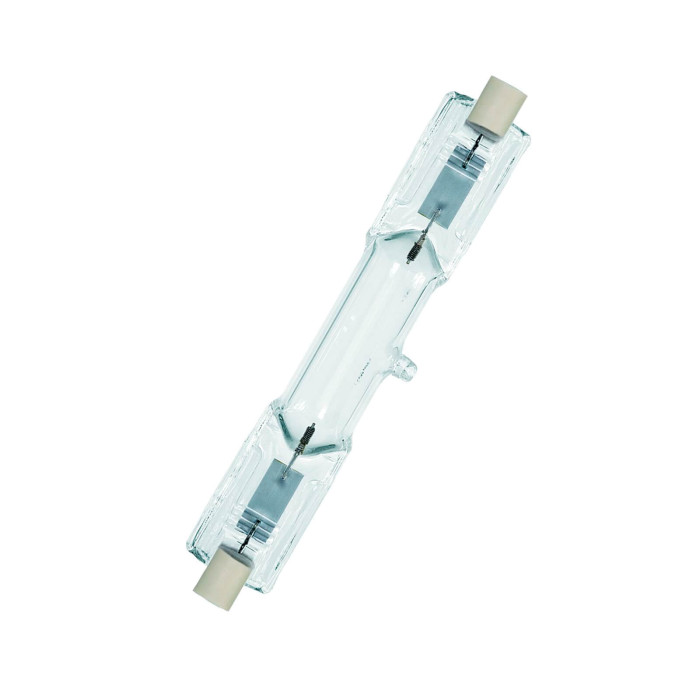

OSRAM SUPRATEC HTC 400-241 230V R7s UV Lamp

Description OSRAM SUPRATEC HTC 400-241 230V R7s UV Lamp

The OSRAM SUPRATEC HTC 400-241 R7s lamp is designed for high-performance UV curing systems, specialized medical phototherapy and industrial non-destructive testing. It delivers consistently high UVA radiation intensity, critical for the precision of curing, diagnostic, and therapeutic processes.

Product name (full): OSRAM SUPRATEC HTC 400-241 230V R7s
Lamp type: Metal halide UV lamp
Rated power: 400 W
Rated line voltage: 230 V
Socket type: R7s
Lamp operating current: 2.1 A
Lamp voltage in operating mode: 100 V
Start-up voltage: > 25 kV
Line frequency: 50/60 Hz
UV radiation range: 280-450 nm
Spectral type: HTC 241
Peak wavelength Radiation Wavelength: 365 nm
UV Radiation Power (Total, 280-450 nm): 90 W
UVA Radiation Power (315-400 nm): 70 W
UVB Radiation Power (280-315 nm): 20 W
UV Energy Efficiency: 22.5%
Average Life: 1500 h
Burning Position: Universal
Cooling Type: Forced Air
Overall Length (L): 118 mm
Bulb Diameter (D): 23 mm
Bulb Material: Quartz Glass
Electrode Material: Tungsten
Required Ballast: Specialized for metal halide UV lamps 400 W
Operating ambient temperature: 5-40 °C
Maximum bulb temperature in operating mode: 900 °C
Warm-up time: 5 min
Relight time (cold): 10 min
