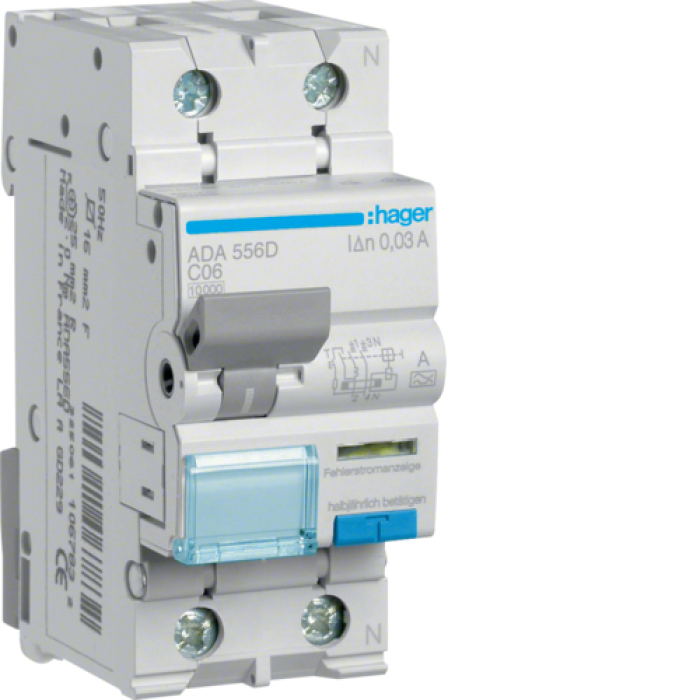

Residual current circuit breaker 1P+N 10kA C-6A 30mA, Hager ADA556D

Description Residual current circuit breaker 1P+N 10kA C-6A 30mA, Hager ADA556D

Article: ADA556D
Volator: Hager
Device type: Differential automatic circuit breaker (ПЗВ+АВ)
Number of poles: 1P+N
Nominal flow In: 6 A
Connection characteristic: C
Nominal chemical building Icn: 10 kA
Differential flow type: A
Nominal differential flow IΔn: 30 mA
Nominal voltage Un: 230 V AC
Frequency: 50 Hz
Nominal impulse vitrimuvan voltage Uimp: 4 kV
Insulation voltage Ui: 500 V
Energy transfer class: 3
Mechanical wear resistance: 20000 cycles
Electrical wear resistance: 10000 cycles
Number of modules: 2
Width: 36 mm
Installation: DIN rail
Cutting of the connected conductor (hard): 1 to 25 mm²
Cutting of the connecting conductor (flexible): 1 to 16 mm²
Clamp tightening torque: 2.8 Nm
Robocha temperature: from -25 to +40 °C
Saving temperature: from -55 to +70 °C
Protection level: IP20
Compliance with standard: EN 61009-1
Validity before switching on the differential jet IΔm: 10 kA
