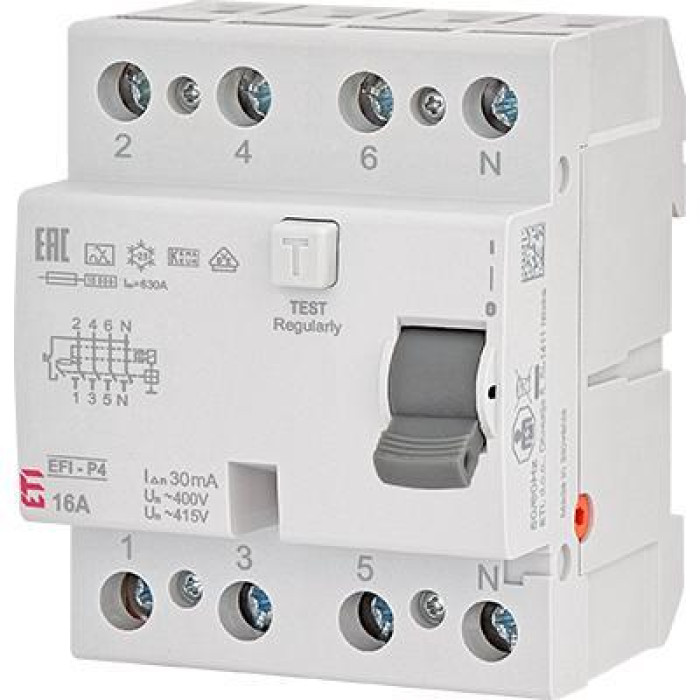

Residual current relay (RCD) 4p EFI6-P4 16/0.03 type A (6kA) ETI

Description Residual current relay (RCD) 4p EFI6-P4 16/0.03 type A (6kA) ETI

Device type: Differential relay (DRV)
Number of poles: 4
Nominal flow In: 16 A
Nominal differential flow IΔn: 0.03 A
Type of sensitivity to differential strum: A
Rated power that switches on during a short circuit Icn: 6 kA
Rated operating voltage Ue: 230/400 V AC
Nominal frequency: 50/60 Hz
Nominal insulating voltage Ui: 500 V
Nominal impulse voltage Uimp: 4 kV
Hour of operation: Mittev (< 300 ms at IΔn)
Protection level: IP20
Operating temperature range: -25 to +55 °C
Saving temperature range: -30 to +70 °C
Maximum span of the connected cable (hard): 35 mm²
Maximum span of the connected cable (flexible): 25 mm²
Terminal tightening torque: 3 Nm
Mechanical wear resistance: 10000 cycles
Electrical wear resistance: 2000 cycles
Mounting: 35 mm DIN rail
Compliance with standard: EN 61008-1
Availability of contact position indicator: Yes
The presence of the differential flow indicator: So
