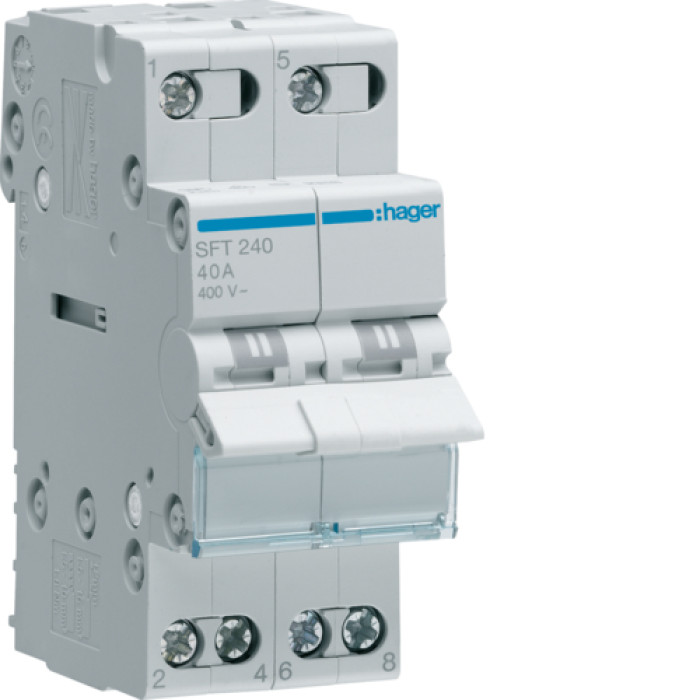

SFT240 Hager changeover switch 40a

Description SFT240 Hager changeover switch 40a

Nominal flow: 40 A
Number of poles: 4P
Functional type: Peremikach I-0-II
Number of stable positions: 3
Nominal operating voltage of the exchanger: 230/400 V
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 6 kV
Drying category: AC-22A
Nominal frequency: 50/60 Hz
Steps zakhistu (clem): IP20
Protection step (installed at the shield): IP40
Mounting method: DIN rail (TH35)
Number of modules: 4
Electrical wear resistance: 2000 cycles
Mechanical wear resistance: 10,000 cycles
Operating temperature range: -20 to +50 °C
Saving temperature range: -40 to +70 °C
Cross-section of the connected hard conductor: from 1.5 to 25 mm²
Cross-section of the connected wire conductor: from 1.5 to 16 mm²
Terminal tightening torque: 2.5 Nm
Type of conductor connection: Screw terminals
Compliance with standards: EN 60947-3
