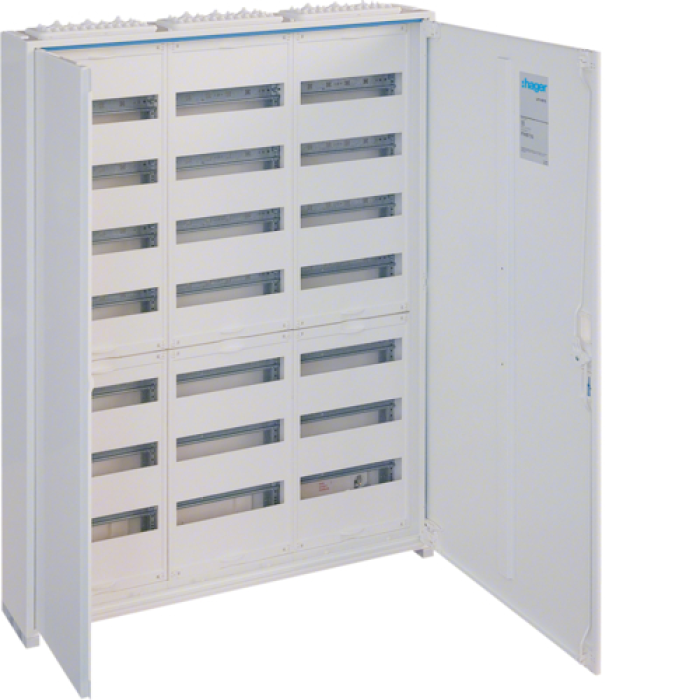

Shield Univers IP44/II 1100x800x161mm 252mod.(3x84)

Description Shield Univers IP44/II 1100x800x161mm 252mod.(3x84)

Protection level IP: IP44
Electrical safety class: II
Height: 1100 mm
Width: 800 mm
Depth: 161 mm
Number of modules: 252
Number of rows: 3
Number of modules per row: 84
Installation type: Insulation
Case material: Sheet steel
Door material: Sheet steel
Case color: White
RAL color code: RAL 9010
Maximum nominal flow: 250 A
Nominal operating voltage: 400 V changeover
Nominal insulation voltage: 500 V changeover
Mechanical shock resistance: IK07
Operating temperature range: -5...+40 °C
Saving temperature range: -25...+60 °C
DIN rail thickness: 3
Possibility of changing the door side: Yes
