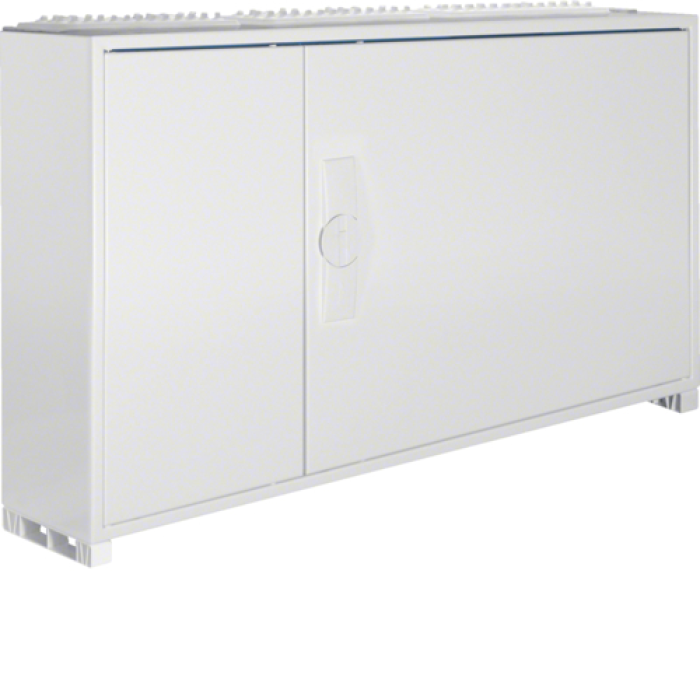

Shield Univers IP44/II 500x800x161mm 108mod.(3x36)

Description Shield Univers IP44/II 500x800x161mm 108mod.(3x36)

Product type: Switchboard
Installation type: Prikhovaniy
Series: Univers FWB
Model: FWB33S
Protection level IP: IP44
Protection class for electric shock: II (sub-grade Insulation)
Height (outer): 800 mm
Width (outer): 500 mm
Depth (outer): 161 mm
Number of DIN modules (outer): 108
Number of rows: 3
Number of modules in one row: 36
Case material: Sheet steel
Door material: Sheet steel
Color: White (RAL 9010)
Nominal operating voltage: 400 Volts
Tested insulation voltage: 2500 V (50 Hz, 1 xv)
Mechanical locking level IK: IK07
Door opening angle: 120°
Door re-hanging ability: So
Door type: Sutsilni
Lock type: Rotary lock with the possibility of installing a cylinder lock
Compliance with standard: IEC/EN 61439-3
DIN rail strength: 3
