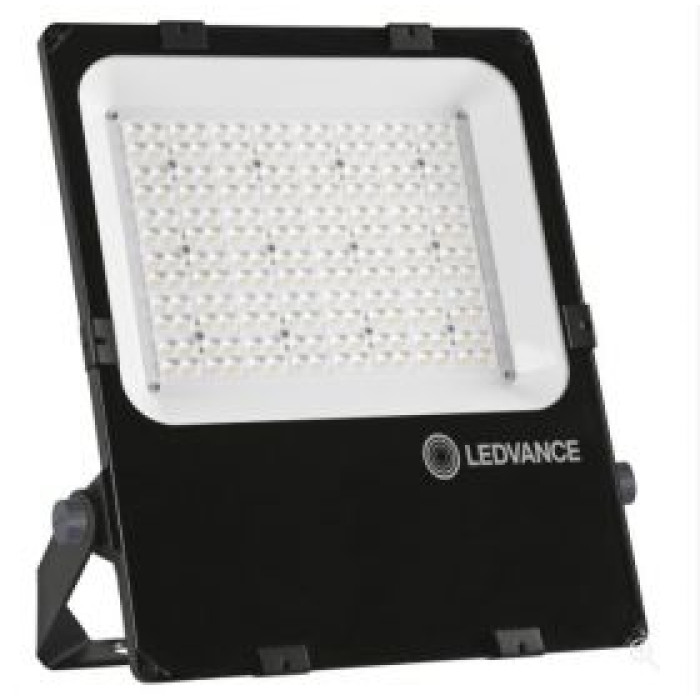

Ledvance (Osram) FL PFM 200W/4000K SYM R30 BK floodlight

Description Ledvance (Osram) FL PFM 200W/4000K SYM R30 BK floodlight

ELECTRICAL CHARACTERISTICS
Rated power 200.00 W
Operating mode Built-in LED driver
Rated voltage 220… 240 V
Power factor λ> 0.90
Network frequency 50/60 Hz
Max. no. lumens at open circuit. B16 A 2
Max. no. lumens at open circuit. C10 A 2
Max. no. lumens at open circuit. C16 A 3
Inrush current 67 A
Total harmonic distortion <20%
Inrush time Th50 1000 μs
LUMINAIRE CONTROL TRANSMISSION DATA
Low flicker Yes
PHOTOMETRIC DATA
Color temperature 4000 K
Luminous flux 26800 lm
Luminous efficacy 140 lm/W
Standard deviation of color matching ≤5 SDCM
Light color (designation) Cool white
Color rendering index Ra> 80
LIGHT TECHNICAL CHARACTERISTICS
Beam angle 30 °
DIMENSIONS AND WEIGHT
Length 494.0 mm
Width 395.0 mm
Height 87.0 mm
Product weight 6300.00 g
Cable length 2000 mm
COLORS AND MATERIALS
Casing material Aluminum
Product color Black
Casing color Black
Lid material Glass
TEMPERATURES AND OPERATING CONDITIONS
Ambient temperature range -30… + 50 ° C.
LIFE LIFE
Number of switching cycles 100,000
Service life L70 / B50 at 25 ° C 100,000 h
Service life L80 / B10 at 25 ° C 70,000 h
Lifetime L90/B10 at 25°C 30,000 h
ADDITIONAL PRODUCT DATA
Mounting type Surface
Installation location Wall / Pole / Floor / Ceiling
Low flicker Yes
FEATURES
Adjustable Yes
Dimmable No
Connection type Cable, 3-pole
Replaceable LED module Not replaceable
CERTIFICATES AND STANDARDS
IK protection class (impact resistance) IK08
Glow-wire test according to IEC 60695-2-12 650°C
Photobiological safety group EN62778 RG1
Protection class I
Protection type IP66
Luminaire with limited surface temperature, class "D" Yes
Standards CE / CB / ENEC / TÜV SÜD / EAC / RoHS
LOGISTIC DATA
Storage temperature range -40… + 70 ° C.
