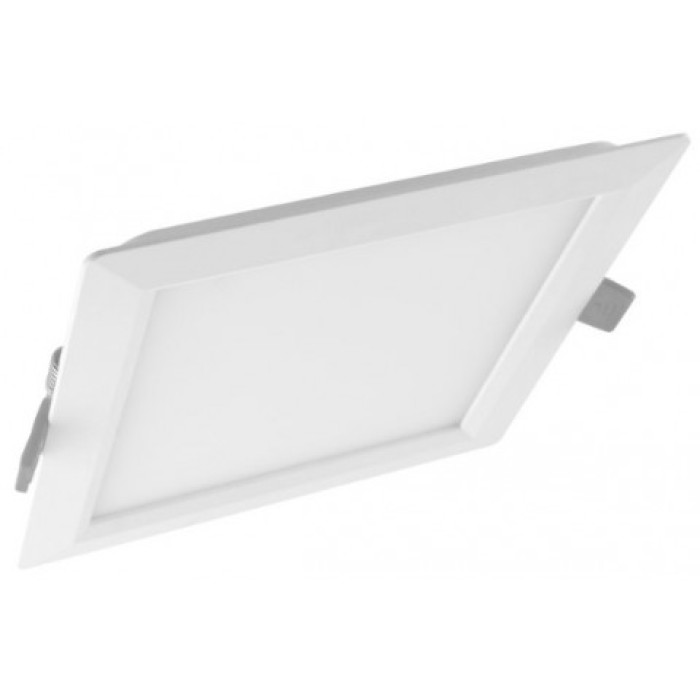

Lamp Osram DL SLIM SQ155 12W/4000K WT IP20

Description Lamp Osram DL SLIM SQ155 12W/4000K WT IP20

ELECTRICAL DATA
Rated power 12.00 W
Operating mode Built-in LED driver
Rated voltage 220… 240 V
Power factor λ 0.50
Network frequency 50/60 Hz
Inrush current 15.6 A
Total harmonic distortion <20%
Inrush current time Th50 50 μs
LUMINAR TRANSMISSION DATA
Output current 180 mA
ECG - output ripple current <6.5%
Max. no. lum. on open circuit B16 A 48
Max. no. lumin. on open circuit. C10 A 38
Max. no. lumin. on open circuit. C16 A 61
PHOTOMETRIC DATA
Color temperature 4000 K
Luminous flux 1020 lm
Luminous efficacy 85 lm / W
Standard deviation of color matching Light color (designation) Cool White
Color rendering index Ra> 80
LIGHT TECHNICAL DATA
Beam angle 120 °
DIMENSIONS AND WEIGHT
Length 169.0 mm
Width 169.0 mm
Height 30.0 mm
Product weight 308.00 g
Mounting length 155.0 mm
Mounting width 155.0 mm
COLORS AND MATERIALS
Casing material Polycarbonate (PC)
Product color White
Casing color White
Cover material Polycarbonate (PC)
Light-emitting surface material Polycarbonate
TEMPERATURES AND OPERATING CONDITIONS
Ambient temperature range -20… +50 °C
LIFE LIFE
Life expectancy L70/B50 at 25 °C 30,000 h
Life expectancy L80/B10 at 25 °C 20,000 h
Life expectancy L90/B10 at 25 °C 12,000 h
Number of switching cycles 50,000
ADDITIONAL PRODUCT DATA
Mounting type Recessed
Location Installation Ceiling / Wall
FEATURES
Dimmable No
Connection type Screwless terminal, 2-pole
Replaceable LED module Not replaceable
CERTIFICATES AND STANDARDS
Protection class IK (impact resistance) IK03
Heat resistance test according to IEC 695-2-1 650 ° C
Photobio. safety group according to EN62471 RG 0
Protection class II
Protection type IP20
Standards CE / CB / EAC / RoHS
