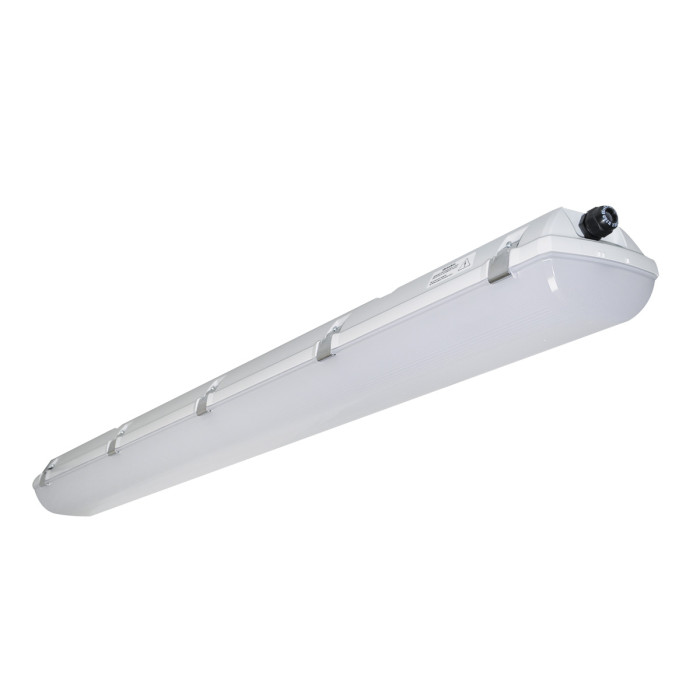

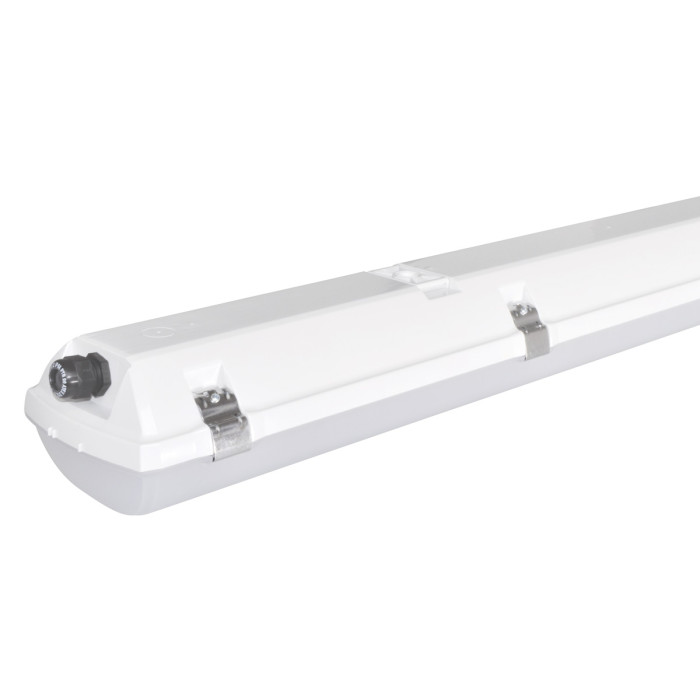

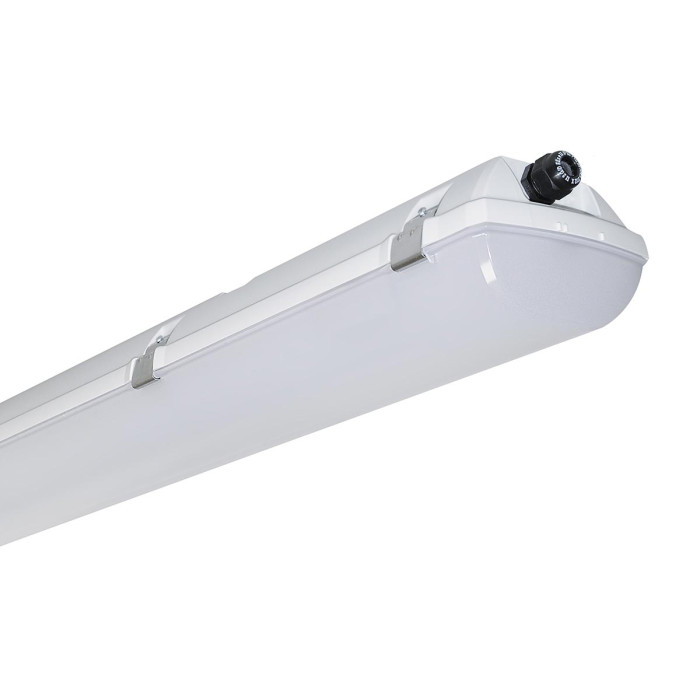

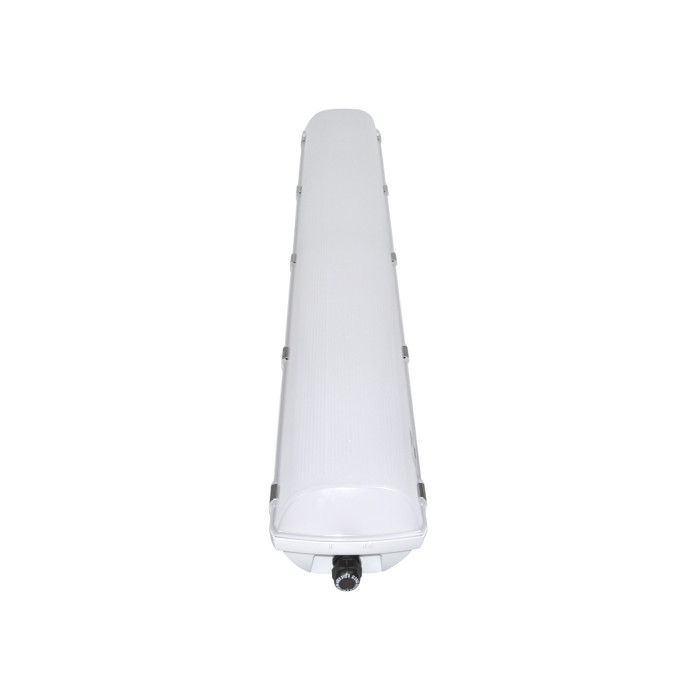

Explosion-proof luminaire PRIMA LED Ex 2/21 1.2ft PCc 1600/840

Description Explosion-proof luminaire PRIMA LED Ex 2/21 1.2ft PCc 1600/840

Explosion-proof LED luminaire PRIMA LED Ex 2/21 1.2ft PCc 1600/840 (ATEX, IP66, IK10)

Professional industrial luminaire designed for use in environments with a potential explosion hazard of gas, dust and flammable vapors. The model fully complies with the requirements of the EU Directive 2014/34/EU and has passed strict certification for areas with special safety requirements.

The luminaire is certified for use in the following areas:

• II 3G Ex nR IIC T6 Gc (gas protection)
• II 2D Ex tb IIIC T70°C Db (dust protection)
• Certificate of conformity: TÜV CY 25 ATEX 0207317 X
• Compliance with standards: EN 60079-15, EN 60079-0 and EN 60079-31.

Areas of application:

• Chemical and petrochemical industry: areas with flammable vapors.
• Woodworking and elevators: areas with high concentrations of explosive dust.
• Heavy industry: shops with aggressive environments and risk of mechanical damage.

Design advantages:

• Maximum Durability: The housing and diffuser made of impact-resistant polycarbonate (PC) have the highest impact protection class IK10.
• Watertightness: The IP66 system guarantees complete protection against dust and powerful jets of water.
• Efficiency: High light output 135 lm/W provides significant energy savings.
• Temperature durability: Stable operation in extreme conditions from -25 °C to +60 °C (from +5°C to +45 °C for luminaires with emergency modules)

Technical specifications:

• Luminous efficiency: 151 lm/W.
• Color temperature: 4000 K (CRI > 80).
• Service life: 50,000 hours (L90/B10) - extremely low diode degradation rate.
• Glare rating (UGR): from 22 to 27.
• Cable entries: M20x1.5 (with ATEX thread).

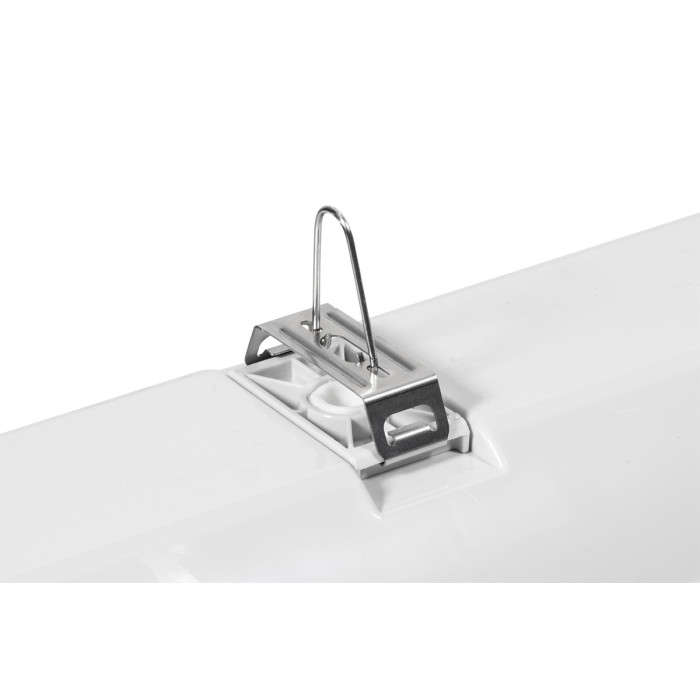

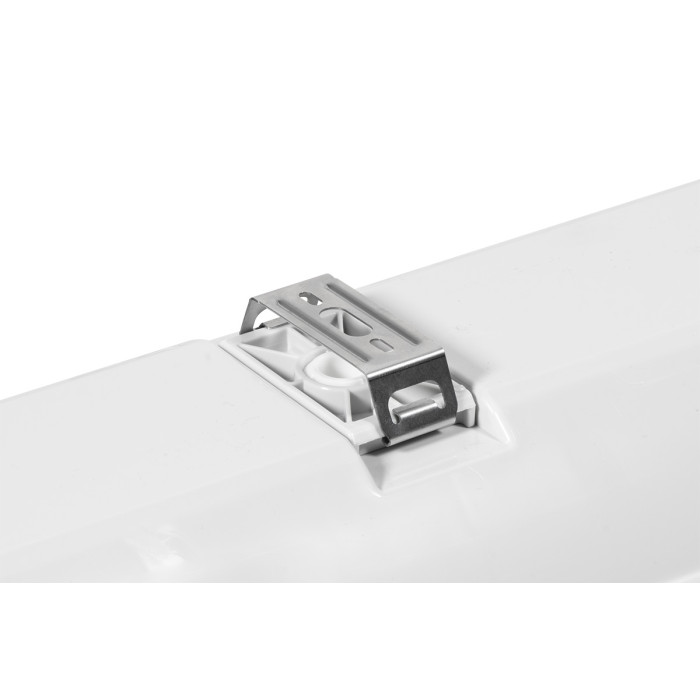

• Completion: The set includes hooks and brackets made of stainless steel.

Materials and execution:

• Housing: Grey polycarbonate (RAL 7035), resistant to UV radiation and deformations.
• Diffuser: Semi-transparent impact-resistant polycarbonate.
• Reflector: White steel sheet (RAL 9003).
• Clips: Stainless steel combined with polyamide.
• Seal: Polyurethane foam (PUR) in the grooves of the base.

Connection options:

The luminaire supports through-hole mounting and is equipped with screwless terminal blocks:

• Standard: 3- or 5-pole connection.
• On request: 7-pole connection (for complex systems control).
• Wires: cross-section 1.5 mm² (2.5 mm² available on request).
