Diesel injector puller Mercedes CDI (OM 611/612/613) QUATROS QS20357

Description Diesel injector puller Mercedes CDI (OM 611/612/613) QUATROS QS20357

QUICKSTER PROFESSIONAL

Bosch diesel injector puller, 3 pcs., for Mercedes CDI engines (Sprinter, ML, C/E-Class).

Kit for dismantling injectors without a reverse hammer and removing the cylinder head on Mercedes-Benz and Jeep.

Functional Purpose

Specialized puller for dismantling Bosch CDI injectors without a reverse hammer, removing the valve cover, and damaging the cylinder head.

Compatibility

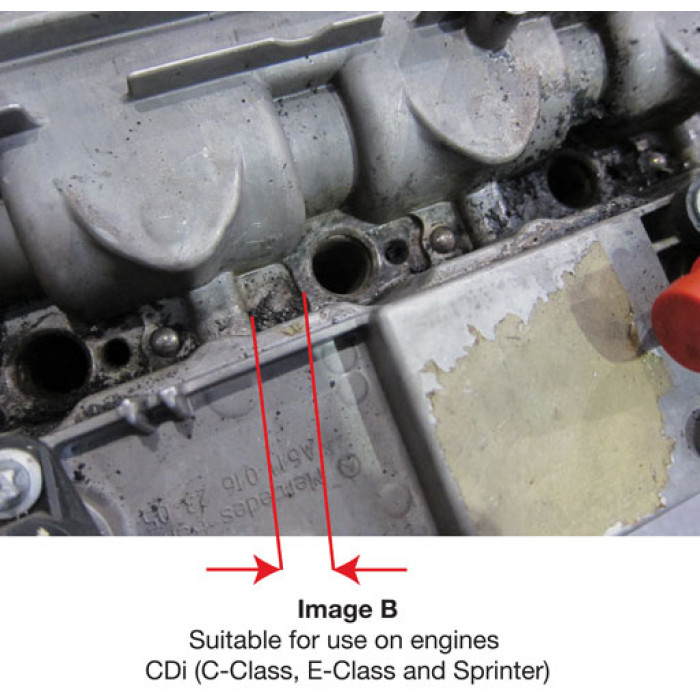

Suitable for Mercedes-Benz Sprinter, ML270, C-Class, E-Class and Jeep Grand Cherokee 2.7 CRD with OM612 engine (2000>).

Package Contents

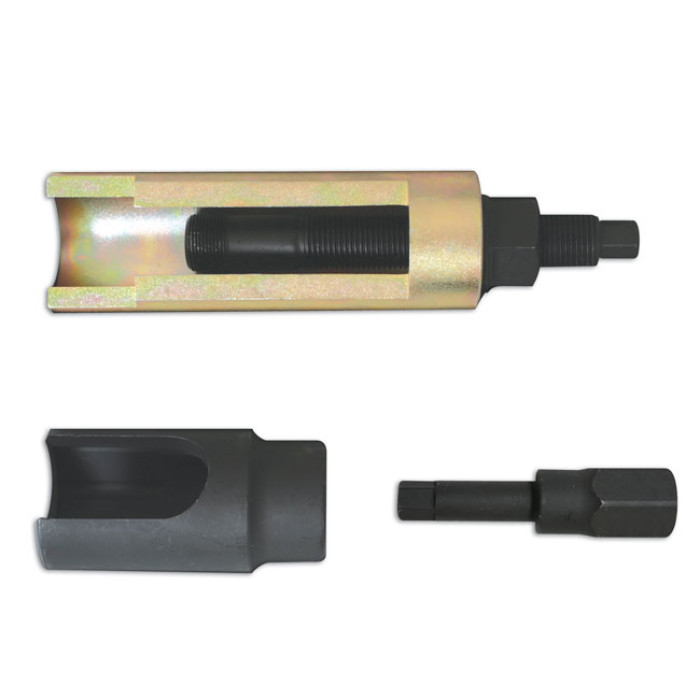

29 mm impact head, special 10 mm hex key, and a support shaft with wide shoulders to protect the cylinder head.

Description QS20357

Mercedes CDI Diesel Injector Puller QS20357 is a specialized 3-piece tool for workshops servicing Mercedes-Benz and Jeep diesel engines. This set is designed to remove Bosch injectors without the use of a reverse hammer. The kit includes a 29 mm impact socket, a special 10 mm hex key, and a support shaft with wide shoulders to protect the cylinder head.

Trying to remove a Bosch CDI injector with improvised means or using a reverse hammer often results in damage to the inside of the injector, the threads in the cylinder head, or the need to remove the valve cover. The QS20357 completely solves this problem: a special key pulls out the inside of the injector, the support shaft with wide shoulders evenly distributes the load on the cylinder head, and screwing the shaft into the injector and turning the nut counterclockwise smoothly pulls out the injector without impact.

Application

⚠️ Important: Before use, make sure that the engine has Bosch CDI injectors. The support shaft must be correctly installed with wide shoulders on the cylinder head for even load distribution.

Kit Contents

When to use this puller

• When replacing Bosch CDI diesel injectors on OM612 engines.

• For removing coked injectors without using a back hammer.

• For engine repairs without removing the valve cover and cylinder head.

• For servicing Mercedes Sprinter, ML270, C-Class, E-Class and Jeep Grand Cherokee.

Advantages of QS20357

No reverse hammer

The design allows injectors to be removed by smooth screwing without impacts, which is safer for the cylinder head.

Cylinder head protection

The wide shoulders of the support shaft evenly distribute the load, preventing damage to the cylinder head.

Compact set

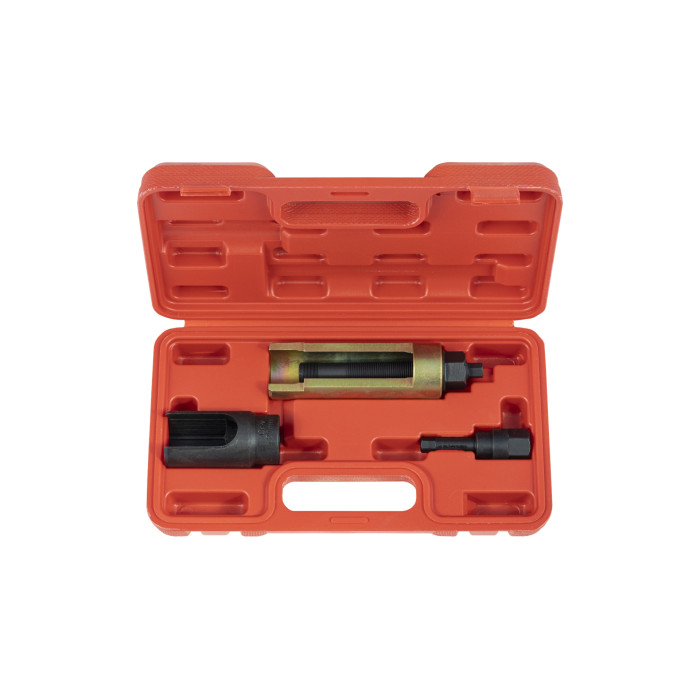

All 3 components in one case — ready to work at any time.

Frequently Asked Questions

Is the puller suitable for Mercedes Sprinter 2.7 CDI?

Yes, the set is specially designed for OM612 engines, which were installed on Sprinter, ML270, C-Class and E-Class.

Is a reverse hammer required for this puller?

No, this is the key advantage of the kit — the injectors are removed by smooth screwing without the use of a reverse hammer.

Is it suitable for Jeep Grand Cherokee 2.7 CRD?

Yes, the Jeep Grand Cherokee 2.7 CRD with the OM612 engine (code 612.963) is fully compatible with this kit.

What is the warranty for the QS20357 kit?

The tool is guaranteed for 12 months against manufacturing defects under professional use.
