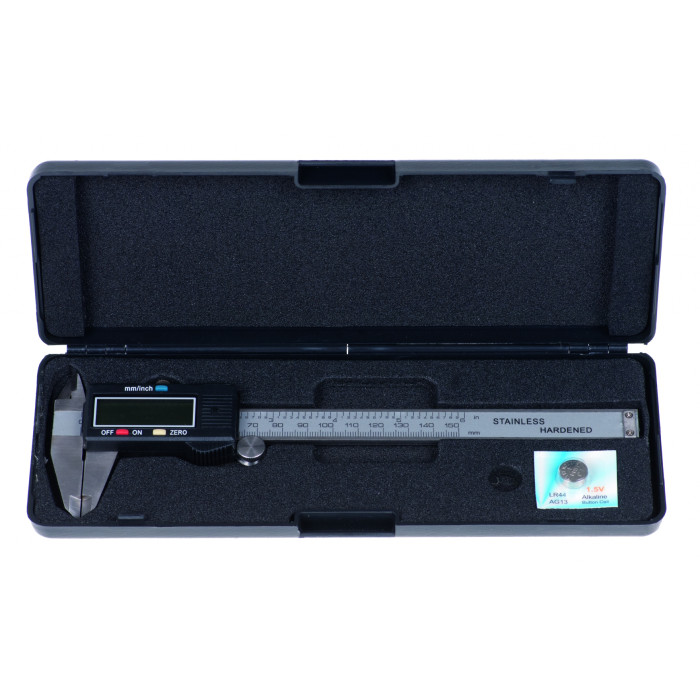

Description Electronic caliper 0-150 mm × 0.01 mm QUATROS QS15506
Electronic caliper 0–150 mm with 0.01 mm accuracy and LCD display
Professional digital caliper for precision measurements in the workshop and in production.
Article: QS15506
Functional purpose
Precision electronic caliper for measuring external, internal dimensions, and depth with high accuracy.
Specifications
Range 0–150 mm (0–6"), resolution 0.01 mm, accuracy 0.02–0.03 mm. LCD display, LR44 power supply.
Reliability
Operating temperature 0–40°C, humidity up to 80%. Storage at –20°C to +70°C.
Description QS15506
The QS15506 electronic caliper is a professional measuring tool for workshops that perform precision measurements of parts. This caliper has a measuring range of 0–150 mm (0–6") with a resolution of 0.01 mm and an accuracy of 0.02 mm in the range of 0–100 mm. It is equipped with an LCD display for easy reading.
Measuring piston diameters, brake disc thicknesses, hole depths, and other dimensions without an accurate caliper leads to errors and incorrect selection of spare parts. The QS15506 completely solves this problem: the digital display shows the exact value without having to look at the vernier, the zero reset function allows for differential measurements, and switching between metric and inch systems makes the tool versatile.
Specifications
| Measuring range | 0–150 mm / 0–6" |
| Resolution | 0.01 mm / 0.0005" |
| Accuracy (0–100 mm) | 0.02 mm / 0.001" |
| Accuracy (100–200 mm) | 0.03 mm / 0.001" |
| Max. measurement speed | 1.5 m/s |
| Display | LCD |
| Power supply | 1×LR44, 180 mAh |
| Operating temperature | 0–40°C |
| Operating humidity | 0–80% |
| Storage temperature | –20°C to +70°C |
⚠️ Important: After use, clean the measuring surfaces from dirt and oil. Store the caliper in a protective case. Replace the battery when the discharge indication appears.
Package
| Electronic caliper | 0–150 mm, resolution 0.01 mm, LCD display |
| Battery | LR44, installed |
| Protective case | In the kit |
When to use this caliper
- For measuring the diameter of pistons, pins, and other engine parts.
- When checking the thickness of brake discs and pads.
- For measuring the external, internal dimensions, and depth of holes.
- When selecting bearings, seals, and other spare parts.
- For precision measurements in turning and milling work.
Advantages of QS15506
Digital display
A large LCD display provides clear reading of measurements without errors.
High accuracy
Accuracy of 0.02 mm in the range up to 100 mm for professional measurements.
Metric/Inch
Instant switching between millimeters and inches with one button.
Frequently Asked Questions
How often should the battery be changed?
The service life of the LR44 battery (180 mAh) depends on the intensity of use. With daily use, the battery typically lasts for several months.
Can the depth of holes be measured?
Yes, the caliper is equipped with a sliding bar for measuring the depth of holes and grooves.
What does the zero reset function mean?
This function allows the setting of a zero value at any position to perform differential measurements.
What is the warranty for the QS15506 caliper?
The tool is guaranteed for 12 months against manufacturing defects, provided it is used correctly.
