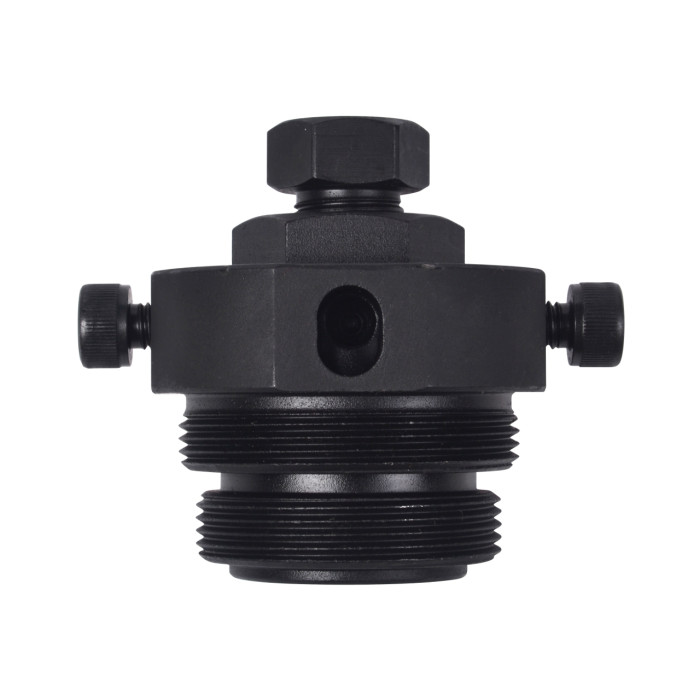

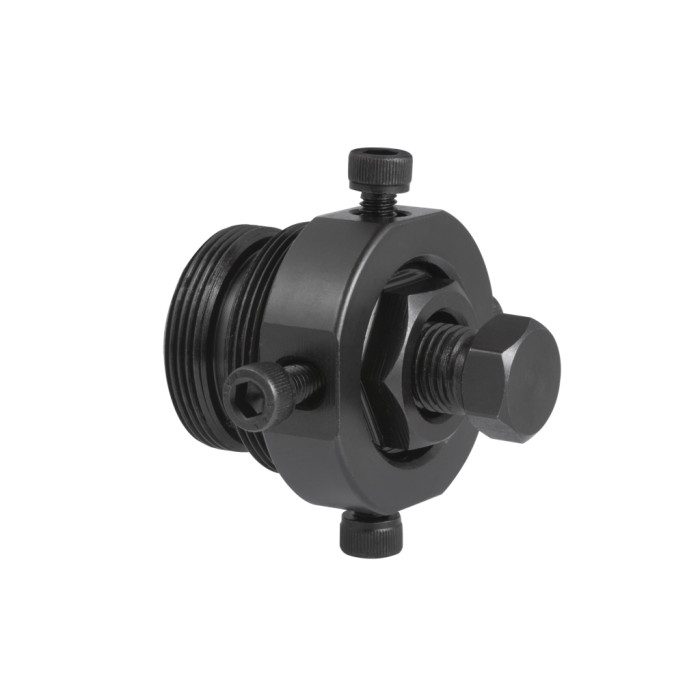

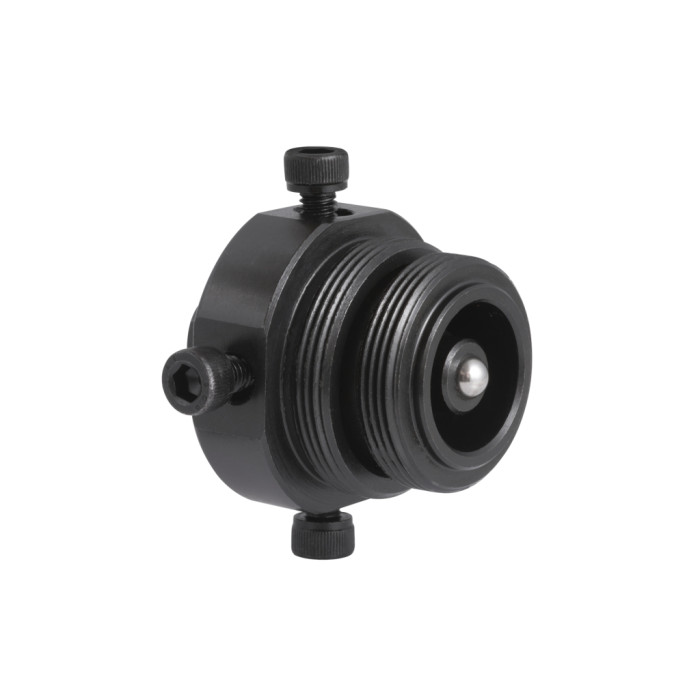

Fuel pump sprocket remover HYUNDAI/KIA 2.0/2.2CRDI QUATROS QS20057

Description Fuel pump sprocket remover HYUNDAI/KIA 2.0/2.2CRDI QUATROS QS20057

Specialized tool for removing the high-pressure fuel pump sprocket on 2.0/2.2 CRDi engines.

Functional purpose

Professional puller for safe removal of the high-pressure fuel pump sprocket without disturbing the timing phases on 2.0 and 2.2 CRDi engines.

Compatibility

Designed for Hyundai ix35, Palisade, Santa Fe II/III/IV, Tucson and Kia Sedona/Carnival, Sorento II/III, Sportage III/IV with 2.0/2.2 CRDi engines.

OEM compatibility

The QS20057 tool is an analogue of the original Hyundai/Kia tool 09331-1M100 for D4HA, D4HB, D4HE engines.

Description QS20057

Hyundai/Kia 2.0/2.2 CRDi High Pressure Fuel Pump Sprocket Remover QS20057 is a specialized tool for workshops servicing Hyundai and Kia diesel engines with Common Rail system. This puller is designed for 2.0 and 2.2 liter engines with timing chain drive, which were installed on Hyundai and Kia crossovers and SUVs.

An error during the dismantling of the injection pump without this puller often leads to the chain jumping off, loss of timing phases and the need for a complete overhaul of the engine. QS20057 completely solves this problem: the tool allows you to remove the sprocket from the pump, holding it in the correct position on the chain, which prevents any disturbance of the timing phases during replacement or maintenance of the injection pump.

Application

Engine codes:

⚠️ Important: Before ordering, be sure to check the engine code of your car with the list above. The tool is designed exclusively for chain diesel engines 2.0 and 2.2 CRDi.

Kit contents

When to use this kit

• When dismantling the high-pressure fuel pump on 2.0 and 2.2 CRDi engines.
• When replacing the fuel injection pump or its seals without disturbing the timing phases.
• To hold the fuel injection pump sprocket in the correct position during repair work.
• When servicing the fuel system of Hyundai Santa Fe 2.2 CRDi, Kia Sorento 2.2 CRDi.
• For work with Hyundai Tucson 2.0 CRDi and Kia Sportage 2.0 CRDi engines.

Advantages of QS20057

Factory precision

Made of high-strength steel with anti-corrosion coating. Full compliance with the original Hyundai/Kia 09331-1M100 fitting.

Compact solution

The specialized puller QS20057 takes up minimal space in the box and is always ready to work.

Engine safety

Holding the injection pump sprocket in the correct position prevents the timing chain from jumping off when dismantling the pump.

Frequently asked questions

Is this puller suitable for the Kia Sorento 2.2 CRDi 2013?

Yes, the Kia Sorento II (2010–2015) with the 2.2 CRDi engine (code D4HB) is fully compatible with this HPFP sprocket remover.

Can the tool be used on the Hyundai Santa Fe 2.0 CRDi 2015?

Yes, Hyundai Santa Fe III (2012–2018) with 2.0 CRDi engine (code D4HA) is fully compatible. Please check the engine code before ordering.

Is the puller suitable for 1.6 CRDi engines?

No, this tool is designed exclusively for 2.0 and 2.2 liter CRDi engines. A different puller is required for 1.6 CRDi.

What is the warranty for the QS20057 tool?

The tool is guaranteed for 12 months against manufacturing defects under professional use.
