Model: FP73SN2
Brand: Hager
Payment
Delivery
The nearest branch addresses can be viewed on the map.
from
100.00₴
Courier delivery in Kyiv
Tomorrow
from
150.00₴
Pickup (Kyiv)
By agreement
For free

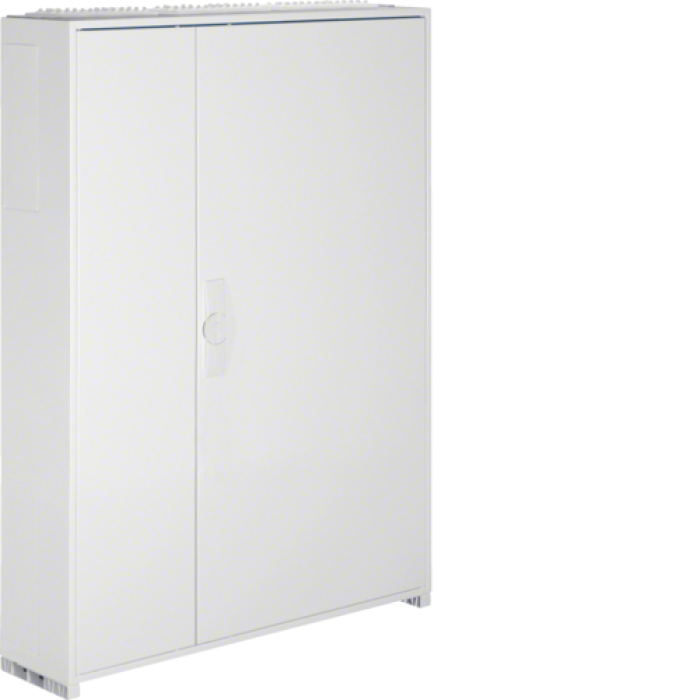

Description Univers IP44/II 1100x800x205mm 3-section switchboard
Product type: Panel boardSeries: Univers
Article: FP73SN2
Height: 1100 mm
Width: 800 mm
Glibina: 205 mm
Number of sections: 3
Protection level IP: IP44
Electrical insulation class: II
Housing material: Sheet steel
Door material: Sheet steel
Mounting type: Wall
Body color: RAL 7035 (light gray)
Protection against mechanical impacts IK: IK09
Nominal insulation voltage Ui: 500 V (AC)
Rated operating voltage Ue: 400 V (AC)
Compliance with standards: EN 61439-1, EN 61439-2
Operating temperature range: -25 to +40 °C
Construction type: Modular
Possibility of installing DIN rails: Yes
Possibility of installing a mounting plate: Yes
Number of door locking points: 2
Lock type: With binary lock
Possibility change door opening sides: Yes
Reviews about Univers IP44/II 1100x800x205mm 3-section switchboard
0
There are no reviews for this product.
Questions and Answers (FAQ) Univers IP44/II 1100x800x205mm 3-section switchboard
There are no questions about this product.
Univers IP44/II 1100x800x205mm 3-section switchboard
Model: FP73SN2
13,036.07₴
