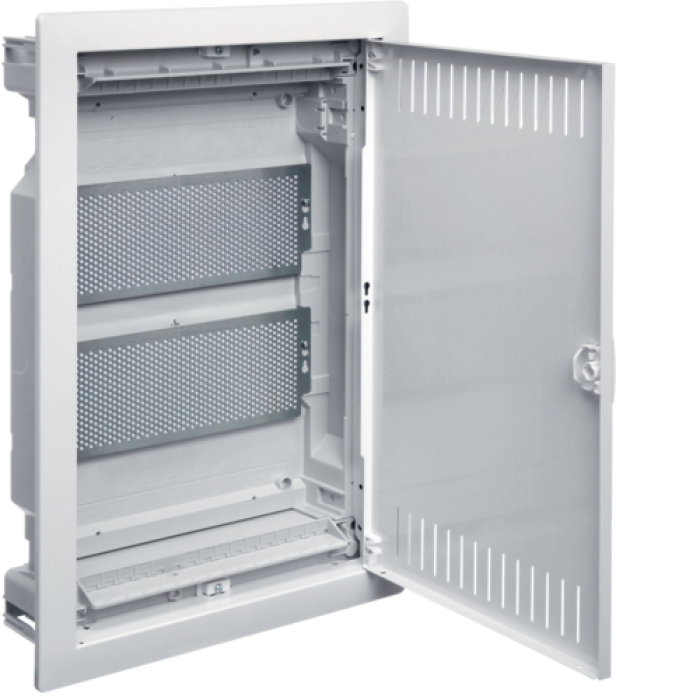

2-row shield for MM equipment, with metal doors, VOLTA

Description 2-row shield for MM equipment, with metal doors, VOLTA

Installation type: built-in
Number of rows: 2
Body material: plastic
Door material: metal
Door color: white (RAL 9010)
Protection level IP: IP30
Mechanical protection stage IK: IK07
Insulation class: II
Nominal insulation voltage Ui: 400 V changeover voltage
Nominal voltage Ue: 230/400 V
Allowable operating temperature: -5...+40 °C
Sample temperature roast with dart: 650 °C
Standard: EN 60670-1, EN 60670-24, EN 62208
Height: 505 mm
Width: 335 mm
Glibina: 94.5 mm
Glibin vbudovuvannya: 90 mm
Height of the visor in the wall: 488 mm
Width of the visor in the wall: 318 mm
Vaga: 4.1 kg
Number of DIN rails: 2
Mounting plate: perforated, with the possibility of mounting a multimedia device
Possibility of installing Keystone modules: so
Possibility of installing power sockets: yes (with the help of additional accessories)
Cable management system: integrated, with cable clamps
Door opening angle: 180°
Door opening: left-handed/right-handed (re-hung)
Door lock: standard (with key)
