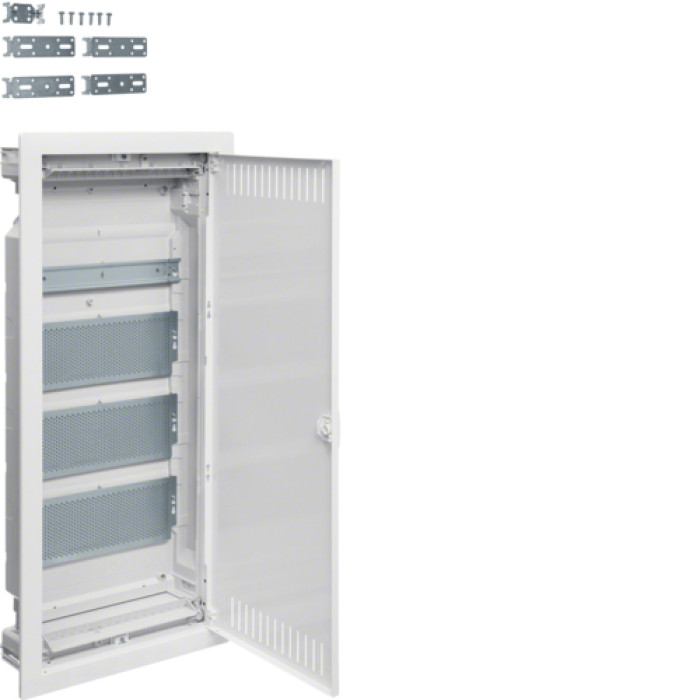

4-row shield for MM equipment, with metal doors, VOLTA

Description 4-row shield for MM equipment, with metal doors, VOLTA

Product type: Shield for multimedia equipment
Virobnik: Hager
Series: Volta VU
Model: VU48NWB
Installation type: In-place (in-place)
Number of rows: 4
Body material: Plastic (polystyrene)
Door material: Metal (steel)
Door colour: White (RAL 9010)
Protection level IP: IP30
Electrosachist class: II (insulation)
Overall height: 888 mm
Overall width: 348 mm
Glibina overall: 94.5 mm
Height of the niche for installation: 865 mm
Width of niche for installation: 335 mm
Depth of niche for installation: 72 mm
Glibin vbudovuvannya: 72 mm
Door opening angle: 120°
Door side: Reversible (left/right)
Type of locking mechanism: Handle-draw (with the possibility of installing a cylinder lock)
Mounting perforated board: 1 piece
Bracket for patch panel: 1 pc.
DIN rail: 1 pc. (for living blocks/terminals)
Cable trim: Included
Stickers for marking: Included
Installation instructions: Included
Possibility of installing multimedia modules: Yes
Conformity standards: IEC/EN 60670-24, DIN 43871, RoHS, CE
Door hinge material: Metal
Fire-fry test (parts with flame-conducting elements): 850 °C
Roasted dart test (other parts): 650 °C
Operating temperature: -5 °C up to +40 °C
Storage temperature: -25 °C to +60 °C
