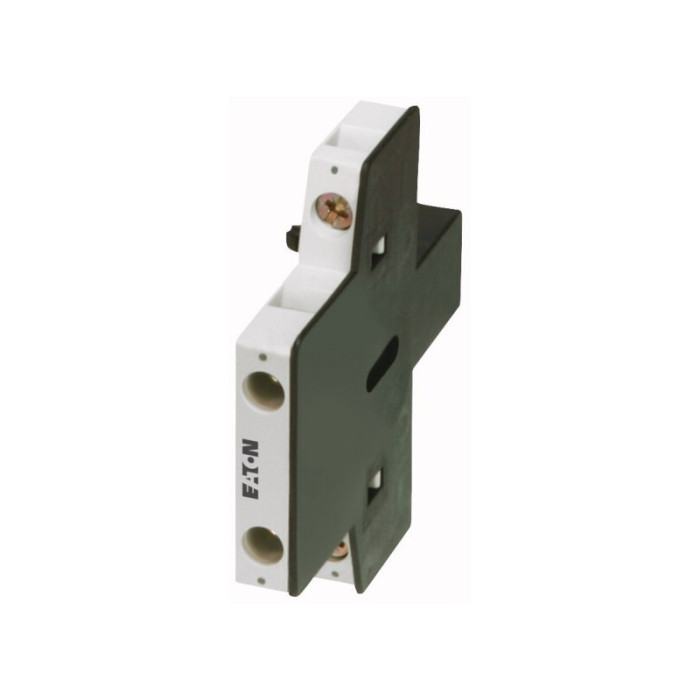

Add. contact DILM1000-XHI11-SA EATON

Description Add. contact DILM1000-XHI11-SA EATON

Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
Function type: Mitty auxiliary contact
Suitable for contactors: DILM650, DILM750, DILM820, DILM1000, DILM1200, DILM1400, DILM1600
Installation type: Bichny
Nominal insulation voltage (Ui): 690 V AC
Nominal impulse voltage (Uimp): 6 kV
Nominal working stage (Ie) AC-15, 230 V: 6 A
Nominal operating flow (Ie) AC-15, 400 V: 3 A
Nominal operating stage (Ie) AC-15, 690 V: 1 A
Nominal operating stage (Ie) DC-13, 24 V: 10 A
Nominal operating stage (Ie) DC-13, 60 V: 5 A
Nominal operating stage (Ie) DC-13, 110 V: 2 A
Nominal operating stage (Ie) DC-13, 220 V: 1 A
Connection type: Screw terminals
Conductor cross-section (single-core): 0.75 - 2.5 mm²
Conductor cross-section (high-core with ferrule): 0.75 - 2.5 mm²
Operating temperature range: -25 ... +60 °C
Protection step (side terminal): IP20
Mechanical service term: 10 x 10^6 operations
Short circuit protection recommendations: Zapobizhnik 10 A gG/gL
Compliance with standards: IEC/EN 60947-5-1, VDE 0660
